| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS43 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Work Pressure:: | 190Mpa-350Mpa |
|---|---|---|---|
| Power: | 22KW | Warranty Of Core Components:: | 2 Years |
| Cutting Width:: | 50-1200 | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Function:: | Light Gauge Steel Production Machine |
| Weight: | 5 T | ||
| Highlight: | Light Gauge cold formed steel machine,Vertex BD Cold Formed Steel Machine,BD System Steel Forming Machine |
||

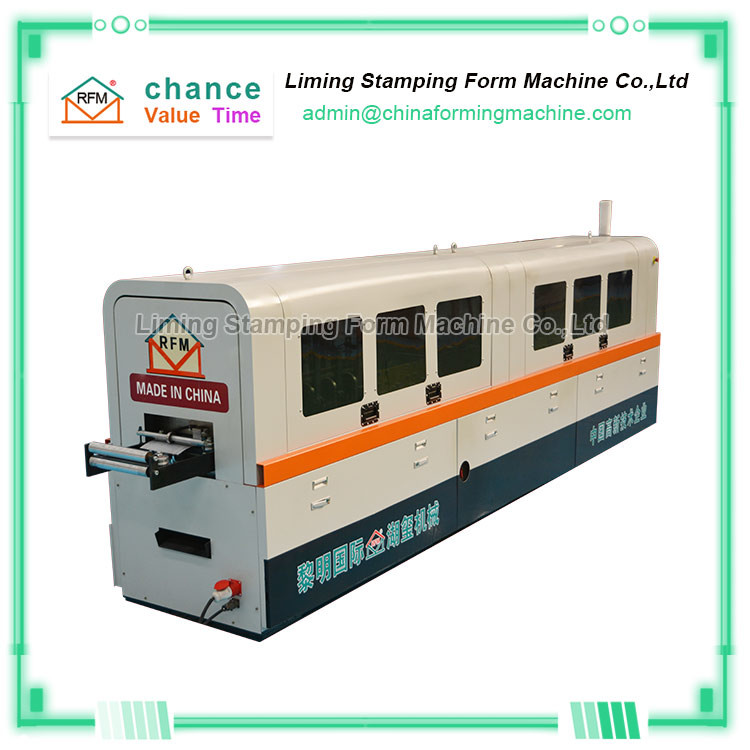

Light Gauge Cold Fomed Steel Framing Machine For Residential Construction
"Light Gauge Cold fomed Steel Framing Machine for Residential Construction" fault self-check and self-check, automatically prompt the fault point, high maintenance efficiency
Continuous production of "Light Gauge Cold fomed Steel Framing Machine for Residential Construction" without the need to replace rollers in the rough processing part.
"Light Gauge Cold fomed Steel Framing Machine for Residential Construction" has the characteristics of good flatness, good bending pressure performance, automatic fixed-length cutting, automatic drilling, high degree of automation, and quick and convenient installation.
"Light Gauge Cold fomed Steel Framing Machine for Residential Construction" can be used as the main structure of medium-sized industrial and civil buildings such as factories, warehouses, mechanical garages, hangars, exhibition halls, theaters, stadiums, markets, sheds and walls. stand by.
Technical parameters of Light Gauge Cold Fomed Steel Framing Machine For Residential Construction
| ltem | Specification |
| Feeding device | with 4 guiding rollers |
| Roll forming machine device | 12 roller stations, one is to form and adjust the angle(from 87 to 95)degree of bottom and web |
| Punching holes | Lip hole,service hole,web notch,End truss,web hole,dimple |
| cutting devices | cut the shape of profile |
| Driving method | servo motor |
| Main control system | One Lenovo laptop and a control box inside of basedframes-of the machine |
| Leaser printing device | leaser printing device for painting |
| spray logo and installation indicating number |
