| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Tile Type:: | Steel |
|---|---|---|---|
| Rolling Thinckness:: | 0.6-1.2MM | Warranty: | 2 Years |
| Use: | Steel Structure | Shaft Material:: | 40Cr |
| Certification: | CE、BV、ISO | Frame Thickness:: | 25mm |
| Dimension(L*W*H):: | 4500*500*1000mm |

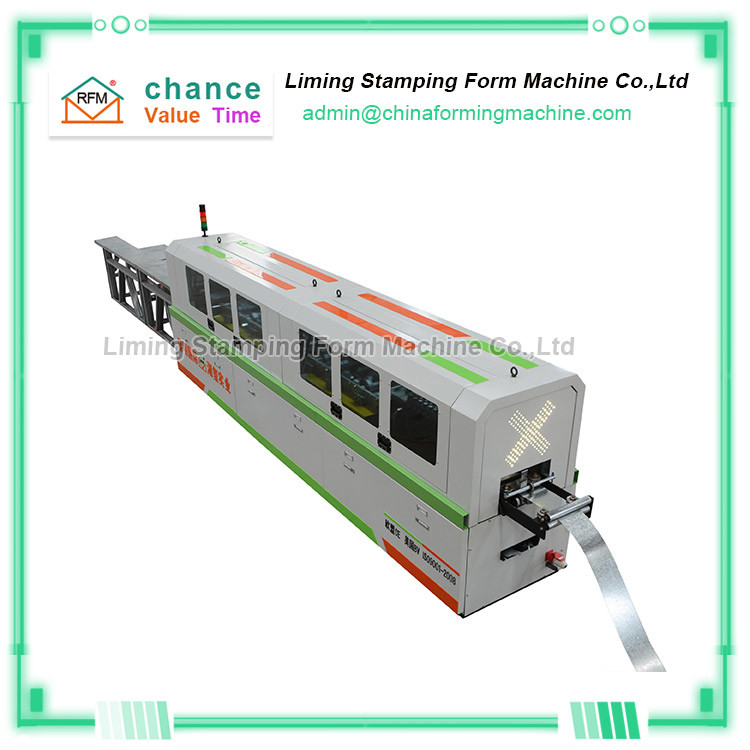

Special Light Steel Frame Villa Keel Forming Machine For Houses
Special light steel frame villa keel forming machine for high-strength houses
The web reinforcement of the special light steel frame villa keel forming machine for houses can increase the strength of the section steel by about 28%.
The special light steel frame villa keel forming machine for houses has a number of patented technologies
The special light steel frame villa keel forming machine for houses continuously punches the mesh without worrying about extrusion
problem.
The special light steel frame villa keel forming machine for houses can run for a long time in high temperature areas
The special light steel frame villa keel forming machine for houses is equipped with a compression refrigeration system (air conditioning refrigeration) to control the constant temperature of the hydraulic system to ensure long-term continuous operation in a high temperature environment.
Technical parameters of Special Light Steel Frame Villa Keel Forming Machine For Houses
| Length of the main part | 6800mm*800mm*1200mm |
| Weight of main part | 3.5-7.2 tons |
| Voltage | 380V 50HZ 3Phase or as you need |
| Frame | 400 H steel or as you need |
| Drive mode | gear |
| Main axle material | GR15 |
| Material of shafts | 45# steel |
| Diameter of shafts | φ50 -φ80mm |
| Number of rollers | 12 rollers |
| Main power | 7.5-11kw |
| Forming speed | 8m-30m/min |
| Adjustment method | Half seams type Looper |
