| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Type:: | Steel Frame & Purlin Machine |
|---|---|---|---|
| Work Pressure:: | 12-16Mpa | Production Capacity:: | 5-8tons/ 8 Hours |
| Use: | Steel Structure | Shaft Material:: | 40Cr |
| Certification: | CE、BV、ISO | Frame Thickness:: | 25mm |
| Dimension(L*W*H):: | 4500*500*1000mm |

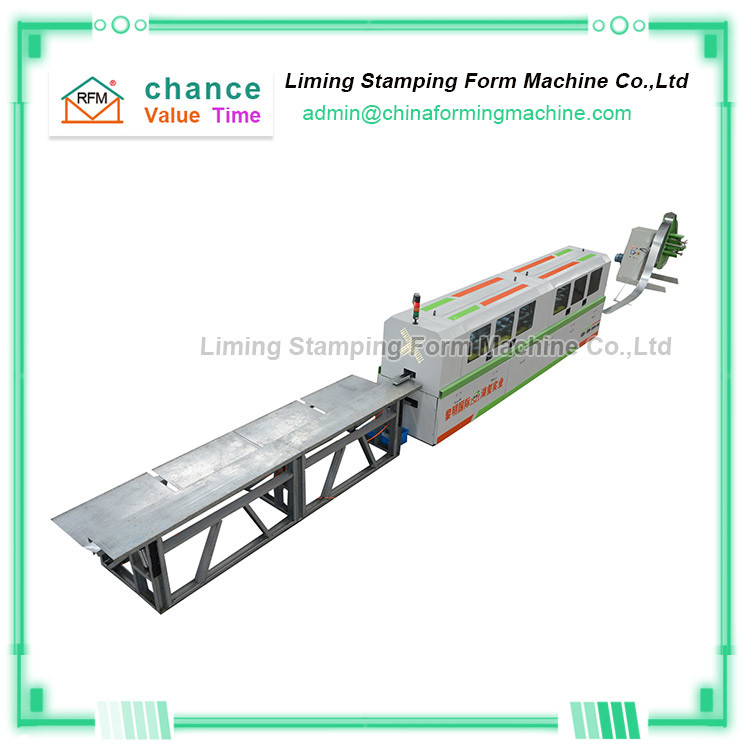

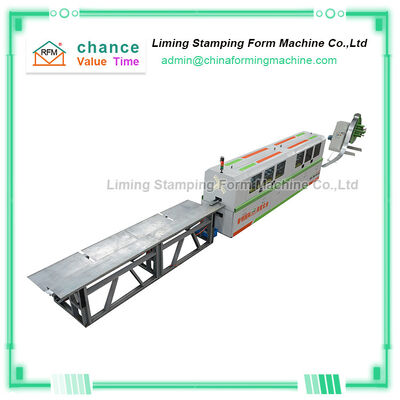

9 Level Light Steel Frame Villa Keel Forming Machine
The core components of the 9 level light steel frame villa keel forming machine are the first-class international and domestic brands
The PLC control system of the 9 level light steel frame villa keel forming machine is Schneider brand
The punching die of the 9 level light steel frame villa keel forming machine is Japanese die steel
The hydraulic components of the 9 level light steel frame villa keel forming machine are Japanese Yuken brand
The design software of the9 level light steel frame villa keel forming machine is VERTEX BD house design software
The following is a detailed description of VERTEX BD software functions:
1. The wall, floor and roof structure are automatically produced, saving design time.
2. Automatic 3D molding to ensure 100% accuracy.
3. With the function of analyzing the project, the software can calculate the bearing capacity.
4. Create frame 3D map and 3D decoration view.
5. The whole building frame can be broken down into independent unit diagrams.
6. Calculate the bill of materials, including the required steel, plates, insulation materials, doors and windows, screws and
Other auxiliary materials.
7. Create processing data, including marked workpieces and interfaces with equipment.
8. Software maintenance and training costs.
Technical parameters of 9 Level Light Steel Frame Villa Keel Forming Machine
| No. | 9 level light steel frame villa keel forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Rollers | 10 rows |
| 3 | Dimensions | 5500*1000*1300mm |
| 4 | Power | 5.5+4kw |
| 5 | Thickness of the plate | 7-1.2mm |
| 6 | Productivity | 0-35m/min |
| 7 | Diameter of the shaft | ∅50mm |
| 8 | Material of the roller | Cr12 Mov |
| 9 | Control system | integrated circuit |
| 10 | Material of the shaft | high grade 45# steel ,heated and quenched ,cylindrical grinding |
