| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Type:: | Steel Frame & Purlin Machine |
|---|---|---|---|
| Power:: | 7.5kw | Production Capacity:: | 5-8tons/ 8 Hours |
| Voltage:: | 3-380V/415V/440V | Shaft Material:: | 40Cr |
| Certification: | CE、BV、ISO | Frame Thickness:: | 25mm |
| Dimension(L*W*H):(L*W*H):: | 3700*800*1300mm |

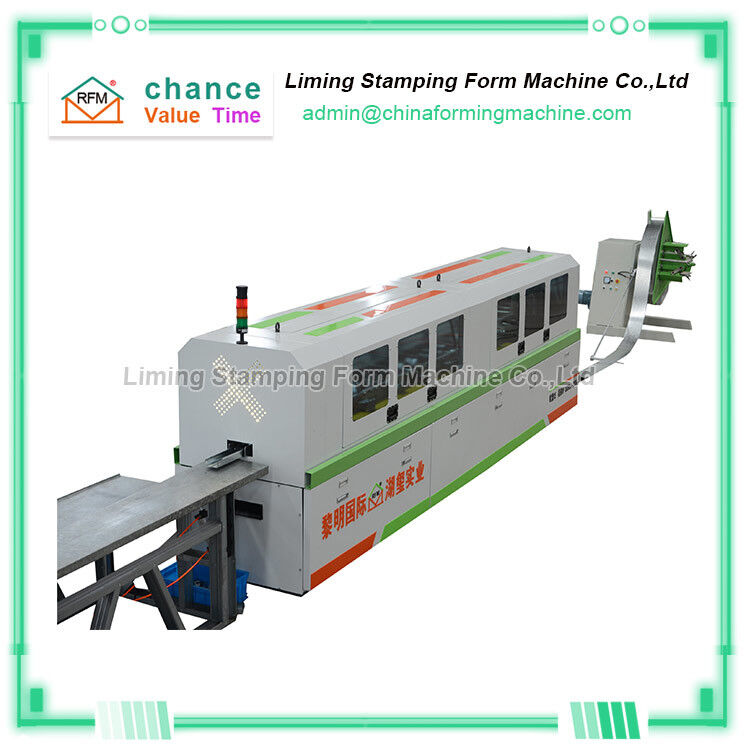

Fireproof And Windproof Light Steel Villa Keel Forming Machine
The fireproof and windproof light steel villa keel forming machine has stable performance, fast processing speed, and less processing waste. It has its own air-conditioning constant temperature and humidity system, and it can work for 8 hours without stopping.
The production equipment of fireproof and windproof light steel villa keel forming machine has a fast processing speed and can work continuously for 24 hours without heating up. The intelligent light steel keel equipment with air conditioning has better processing adaptability in cold areas.
Fireproof and windproof light steel villa keel forming machine tool abrasives are not damaged, the error is less than 0.02mm, bending, opening and cutting are formed at one time.
The fireproof and windproof light steel villa keel forming machine saves raw materials, basically zero loss, and the loading rack is movable, no forklift is needed, saving time, effort and safety.
The light steel villa built by the fireproof and windproof light steel villa keel forming machine has a beautiful appearance, a short construction period, and is green and environmentally friendly. It has a place in the construction market.
Technical parameters of Fireproof And Windproof Light Steel Villa Keel Forming Machine
| Fireproof and windproof light steel villa keel forming machine | |
| Loading capacity | 1.5T |
| Uncoiling width | 300mm |
| Inner diameter | 450-550mm |
| Length of the main part | 3000*800*1400mm |
| Weight of main part | 3T |
| Voltage | 380V/50HZ 3Phase |
| Roller fixer | middle plate |
| Frame | 350H steel |
| Drive mode | chain or gear |
| Material of rollers | 45#steel, surface hard chromium plating |
| Material of shafts | 45#steel |
| Diameter of shafts | 40mm |
| Number of rollers | 10 rollers |
| Main power | 3kw |
| Material of mould | Cr12 quenched |
| Power supply | hydraulic power |
