| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS9 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Type:: | Steel Frame & Purlin Machine |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Forming Speed:: | 30m/min |
| Voltage:: | 3-380V/415V/440V | Shaft Material:: | 40Cr |
| Certification: | CE、BV、ISO | Material Thickness:: | 0.7-1.2mm |
| Dimension(L*W*H):(L*W*H):: | 3700*800*1300mm |

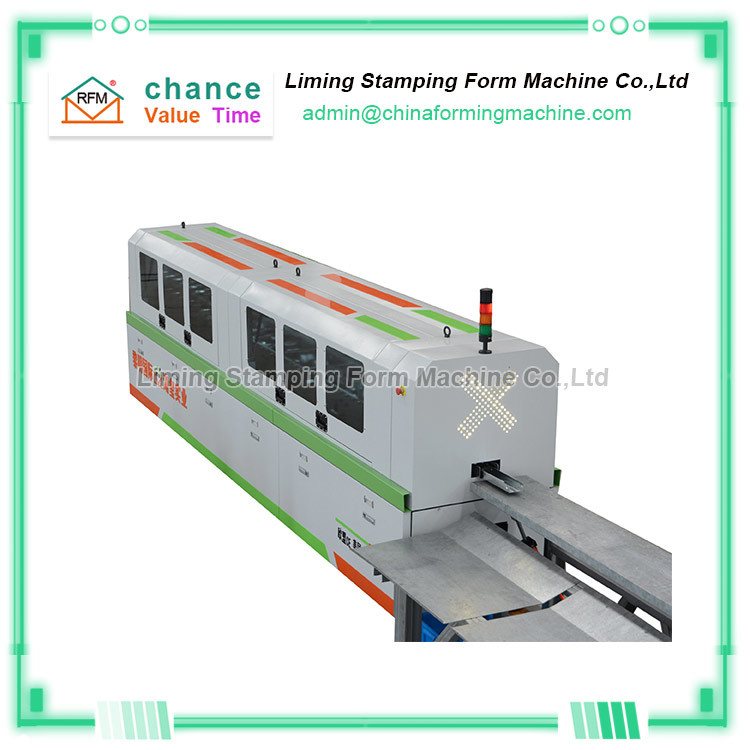

Free Design Of Light Steel Villa Keel Forming Machine
Current buildings also tend to use light steel structures. More and more people are beginning to understand the production and forming machine of light steel villa keel, such as consulting the model of light steel villa keel forming machine, production output and mechanical characteristics, and whether to design the architectural style.
The free design of light steel villa keel forming machine can completely solve the problems faced by the above-mentioned people.
The free design of light steel villa keel forming machine can complete the production of all the main structures of the light steel villa, including feeding, bending, stamping, cutting and other processes are all fully automated mechanical operations.
Free design of light steel villa keel forming machine, stable performance, fast processing speed, less processing waste, independent air conditioning constant temperature and humidity system, 8 hours of uninterrupted work.
Technical parameters of Free Design Of Light Steel Villa Keel Forming Machine
| NO | Item | Specification | |
| 1 | Coil | 0.8-1.2 mm, G300-G550Galvanzied coils and Aluzinc | |
| 2 | Profile dimension | 89*41mm | |
| 3 | Profile tolerance | +-1.0mm | |
| 4 | Rollers | 13 groups, Cr12Mov, vacuumquenching (HRC58-62) | |
| 5 | Punch/cut mold | Cr12Mov, vacuum quenching (HRC58-62) | |
| 6 | Drive method | by gear | |
| 7 | Main motor power | Abt 7.5KW | |
| 8 | Control system | with FOXKPC industrial computer | |
| 9 | Weight/ Container | Abt 5 tonne/ one 20'GP | |
