| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Forming Station:: | 12 Steps |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Forming Speed:: | 30m/min |
| Voltage:: | 3-380V/415V/440V | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Material Thickness:: | 0.7-1.2mm |
| Purlin Size:: | 89*38*9mm,±1mm |

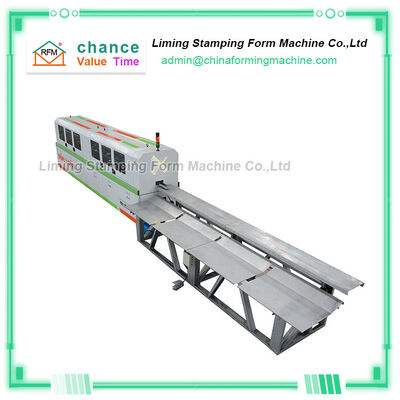

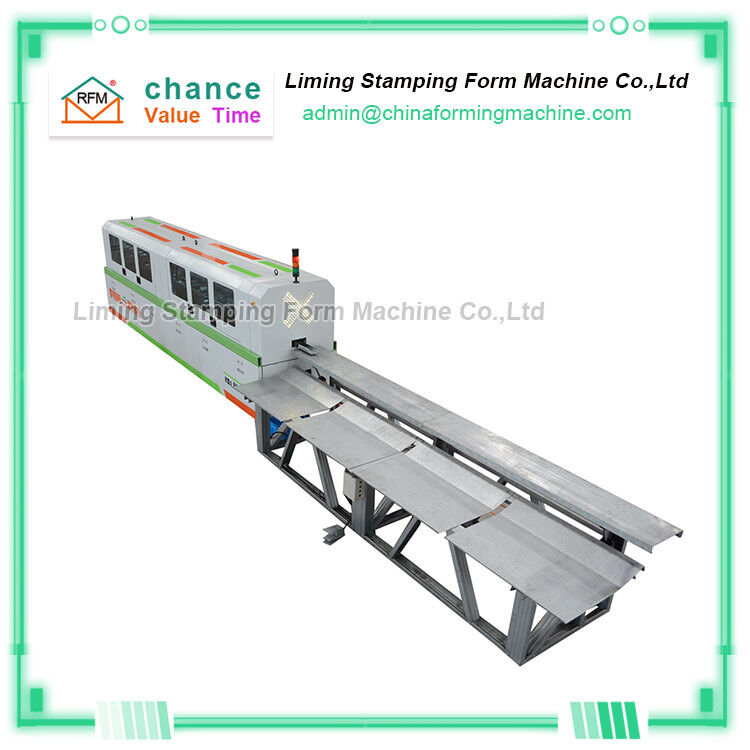

Fully Automatic Integrated Light Steel Villa Keel Forming Machine
Why choose fully automatic integrated light steel villa keel forming machine
The advantages of fully automatic integrated light steel villa keel forming machine:
fully automatic integrated light steel villa keel forming machine saves time, effort, money and earthquake resistance
Nowadays, light steel villas are becoming more and more popular in the market, so it is a wise choice to buy an fully automatic integrated light steel villa keel forming machine now.
The fully automatic integrated light steel villa keel forming machine was developed and produced in 2018. Up to now, both the machine quality and the construction experience are very mature.
The profiles produced by the fully automatic integrated light steel villa keel forming machine
are more accurate and will not produce waste.
Technical parameters of Fully Automatic Integrated Light Steel Villa Keel Forming Machine
| Item | Description |
| Automatic Decoiler | |
| Loading Weight | 3000kgs |
| Coil Inner Diameter | φ430~508mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.75~1.2mm |
| Profile description | |
| C Profile size | 89*41*13mm |
| Roll Forming Machine | |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: high quality GCr15 Bearing steel |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp |
| Control System | |
| Control Device | One Lenovo laptop, a control box inside of based frames of the machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back or stop |
| Main brand | PLC(Delta),Relay(Schneider),Proximity switch(Schneider),Encode(Omron) Servo Motor(Xinjie) |
| Motor and hydraulic System | |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table | |
| Length | 3M with side pnematic support |
| General introduction | |
| 1. Windows system touch panel. Quick importing NC instructions Via network or USB interface. | |
| 2.Visual work process monitoring | |
| 3.Vertex BD Software | |
| 4.German Bosch Rexroth hydraulic system. Quick loading and unloading mould design | |
| 5.High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing | |
| 6.Built-in maintenance free ink jet printer | |
| 7.Perfect forming. Accurate sizing | |
