| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Color: | Client's Request | Type:: | Steel Frame & Purlin Machine |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Forming Speed:: | 30m/min |
| Power: | 11KW | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Material Thickness:: | 0.7-1.2mm |
| Purlin Size:: | 89*38*9mm,±1mm |

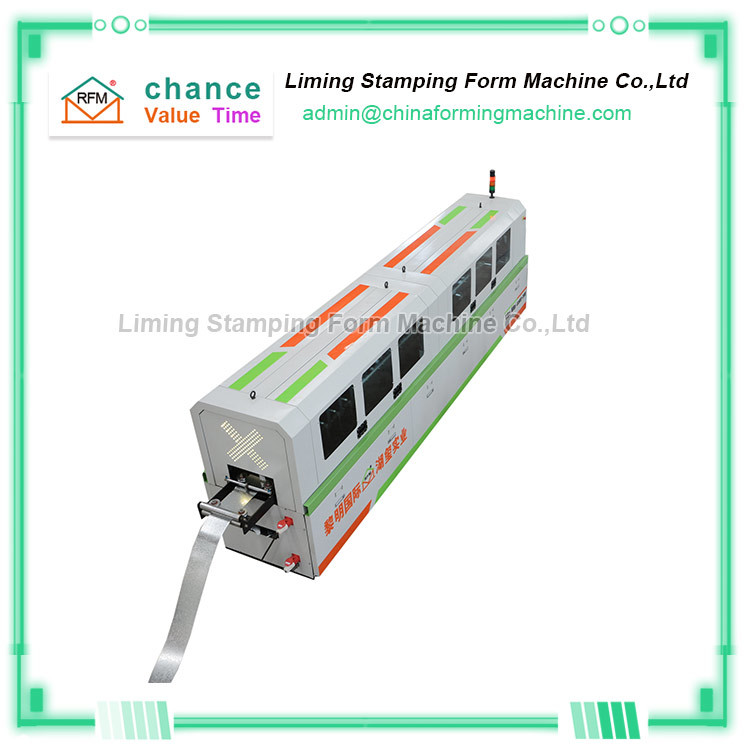

Energy Saving And Environmental Protection Light Steel Villa Keel Forming Machine
The light steel frame constructed by the energy saving and environmental protection light steel villa keel forming machine is one of the best and most feasible alternative building materials in residential and commercial buildings, and is at the forefront.
The energy saving and environmental protection light steel villa keel forming machine adopts light steel structure as the structural system. How is it different from traditional building structure?
Light steel structure is a structural system. Compared with the traditional wooden structure, brick, brick and concrete structure, the light steel structure constructed by the energy saving and environmental protection light steel villa keel forming machine has the advantages of high strength, light weight and good seismic performance.
At the same time, the light steel structure constructed by the energy saving and environmental protection light steel villa keel forming machine also has the advantages of high industrialization, high construction quality, light structure and the strongest continuity.
The light steel structure constructed by the energy saving and environmental protection light steel villa keel forming machine has the shortest construction time and is suitable for atmospheric environments with different climatic conditions. At the same time, the light steel structure formed by the energy saving and environmental protection light steel villa keel forming machine can be reused to reduce environmental pollution. Excellent structure.
Technical parameters of Energy Saving And Environmental Protection Light Steel Villa Keel Forming Machine
| decoiler | weight capacity | 3 tons |
| inner diameter | 450-530mm | |
| out diameter | 1300 mm | |
| type | electric decoiler | |
| running method | automatic | |
| roll forming part | weight | about 3 tons |
| size | 4*0.8*1.8 | |
| total power | 15kw | |
| number of rollers | with 8 groups and 4 groups' correctional rolers | |
| transmission method | gear and chain | |
| brand of main motor | Invet | |
| powerof main motor | 7.5 kw | |
| material of rollers | Cr12 with heat treatment | |
| material of shaft | 40 Cr with vacuum heat treatment | |
| material of cutter | Cr12mov | |
| productivity of machine | 50m/minute with out punching, 0.5-0.6 tons/hour | |
| tolerance of punching hole | +/- 3mm | |
| length distance:+/-0.5mm | ||
| straightness accuracy: 0.3mm | ||
| brand of inject printer | SOJET double head printer | |
| highlight | some parts of the machine we make innovation to make make use more long time and more stronger | |
| control system | Brand of PLC | Delta |
| Brand of speed controller | Delta | |
| Brand of low voltage/switch/encoder/button | Schneider | |
| design software | Vertex BD | |
| task software | Self development program | |
| hydraulic system | power | 5.5kw |
| oil tank | 80L | |
| brand of solenoid valve | HUADE | |
| receiving table | size | 4 meters long |
| After-sale services | warranty | one year |
| training items in China freely | operation training and finished products installation training | |
| machine maintenance | immediate feedback and use real-time communication to solve problems and engineer avaliable to overseas |
