| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Usage:: | Villa Built | Marketing Type:: | Ordinary Product |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Forming Speed:: | 30m/min |
| Voltage:: | 380V,50HZ,3P | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Dimension(L*W*H):: | 9.8m*2.0m*1.8m |
| Control System:: | Fully Automatic Computer Control |

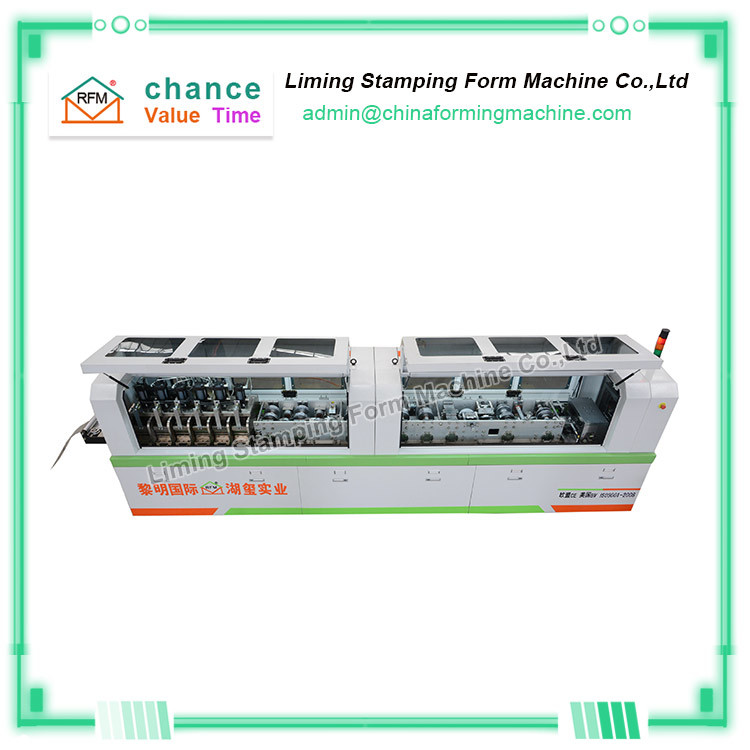

Ultra-Long Quality Assurance Light Steel Villa Keel Forming Machine
The Ultra-long quality assurance light steel villa keel forming machine, faster processing speed, less processing waste and 8 hours of uninterrupted work.
Ultra-long quality assurance light steel villa keel forming machine has the following advantages:
1. Ultra-long quality assurance The light steel structure of the light steel villa keel forming machine is the strongest.
2. Ultra-long quality assurance The light steel structure constructed by the light steel villa keel forming machine can be 100% recycled.
3. Ultra-long quality assurance The recovery rate of light steel structure industry constructed by light steel villa keel forming machine is 68%.
4. Ultra-long quality assurance The light steel structure of the light steel villa keel forming machine is non-combustible and will not promote the spread of fire.
5. Ultra-long quality guarantees that the inorganic material of light steel structure constructed by the light steel villa keel forming machine will not rot, warp, crack, crack or creep.
6. Ultra-long quality assurance The light steel structure of the light steel villa keel forming machine is stable in size and will not expand or shrink due to moisture.
7. Ultra-long quality assurance The quality of the light steel structure of the light steel villa keel forming machine is the same, and the production is strictly produced in accordance with national standards, without regional differences.
Technical parameters of Ultra-Long Quality Assurance Light Steel Villa Keel Forming Machine
| No. | Item | Specification | ||
| 1 | Profile demension | C75*38*9mm | ||
| 2 | Feeding width | 160mm | ||
| 3 | Raw material | G300-G550 GI/GL strip (G450 recommended) | ||
| 4 | Thickness range | 0.6-1.2mm | ||
| 5 | Machine dimensions | 3700*800*1100mm | ||
| 6 | Machine weight | 2.5T | ||
| 7 | Forming method | 9steps | ||
| 8 | Drive mode | Gear + sprocket | ||
| 9 | Main motor | 7.5kw servo motor | ||
| 10 | Roller ,puncher and cutting bladee material | SKD11 | ||
| 11 | Main shaft material | 40Cr | ||
| 12 | Forming speed | 2700m/hour | ||
| 13 | Punch tolerance | ±0.5mm | ||
| 14 | Cutting tolerance | ±0.75mm | ||
| 15 | Hydraulic motor power | 7.5kw | ||
