| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS14 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness:: | 0.3-0.8mm | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Forming Speed:: | 30m/min |
| Voltage:: | 380V,50HZ,3P | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Use:: | Light Steel Keel |
| Control System:: | Fully Automatic Computer Control | ||
| Highlight: | 3D Printing Light Gauge Steel Framing Machines,30m/Min Light Gauge Steel Framing Machines |
||

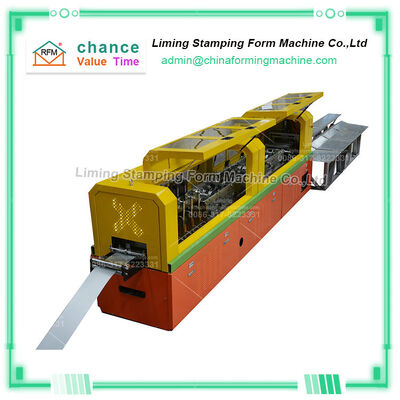

3D Printing Light Steel Frame Villa Keel Forming Machine
The building components produced by the 3D printing light steel frame villa keel forming machine are suitable for the following constructions:
Express hotel, car hotel, villa club;
Civil housing, economic housing, agriculture, forestry and herdsmen’s housing transformation, and staff dormitories;
Production of trusses, mobile houses, modular houses, commercial and industrial buildings;
And cold-formed thin-wall light steel structures, such as emergency rescue, disaster relief and post-disaster reconstruction houses.
The 3D printing light steel frame villa keel forming machine adopts VERTEX BD design software, which is simple and convenient to operate.
The light steel houses built by 3D printing light steel frame villa keel forming machine have various shapes, beautiful appearance, and what you see is what you get.
All materials of the light steel house are processed in batches in the 3D printing light steel frame villa keel forming machine, with higher precision to ensure the quality of the house.
Technical parameters of 3D Printing Light Steel Frame Villa Keel Forming Machine
| Manual Un-coiler | Max Capacity: 5000kgs |
| Inner diameter of coil: 400-600mm | |
| Manual type | |
| Leveling Device | Ensure the material level and straight |
| The width can be adjusted | |
| Main Forming System | Materialt width: As per sketch |
| Thickness of sheet: 0.5-1.0mm | |
| Forming speed: 30-40m/min | |
| Motor Power: 2.2kw | |
| Roller material: 45# steel | |
| Diameter of shaft: DIA56 | |
| Base Frame: 350 H steel welded | |
| Hydraulic Cutting Device | Cutting power: 3kw |
| Oil pump station 1set. | |
| Tolerance: +-1.5mm | |
| Blade Material: CR12 with heat treatment HRC60-62. | |
| Electrical System | Control system: PLC control panel. |
| Power: 380V 50Hz (as per local requirement) | |
| Run-out Table | Frame: 8# steel groove welded |
| Roller type | |
| Quantity: 2 pc |
