| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS18 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness:: | 0.6-1.2MM | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Length Devitation:: | ±0.75mm | Shaft Material:: | High Grade No.45 Steel |
| Producting Speed:: | 300-700m/h | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Usage:: | Building |
| Dimension(L*W*H):: | 3m*1.3m*1.5m | ||
| Highlight: | T0.6mm Light Gauge Steel Framing Machines,SKD11 blade Light Gauge Steel Framing Machines |
||

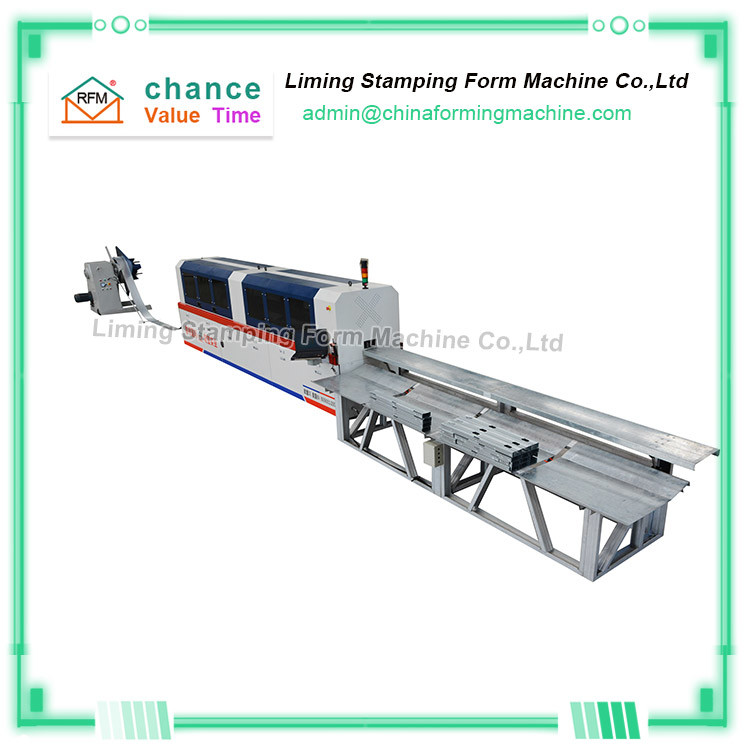

Low Cost And High Quality Light Steel Frame Villa Keel Forming Machine
Process flow of"Low cost and high quality light steel frame villa keel forming machine":
Hydraulic automatic uncoiling and leveling machine (two in one) automatic quick punching, high-speed forming, automatic coding, automatic cutting off automatic production line production.
"Low cost and high quality light steel frame villa keel forming machine"can choose batch/single production mode, stable operation and automatic production.
"Low cost and high quality light steel frame villa keel forming machine" adopts CNC precision processing, stable processing quality, high processing precision, reducing production time, and improving work efficiency.
The stamping dies of the "Low cost and high quality light steel frame villa keel forming machine"are all made of S45C tool steel and the core is made of D2 steel.
Technical parameters of Low Cost And High Quality Light Steel Frame Villa Keel Forming Machine
| NO. | Item | Specification | ||
| 1 | Profile demension | C89*38*9mm | ||
| 2 | Feeding width | 174mm | ||
| 3 | Raw material | G300-G550 GI/GL strip (G450 recommended) | ||
| 4 | Thickness range | 0.6-1.2mm | ||
| 5 | Machine dimensions | 4000*800*1100mm | ||
| 6 | Machine weight | 2.5T | ||
| 7 | Forming method | 9steps | ||
| 8 | Drive mode | Gear + sprocket | ||
| 9 | Main motor | 7.5kw servo motor | ||
| 10 | Roller ,puncher and cutting blade material | SKD11 | ||
| 11 | Main shaft material | 40Cr | ||
| 12 | Forming speed | 2700m/hour | ||
| 13 | Punch tolerance | ±0.5mm | ||
| 14 | Cutting tolerance | ±0.75mm | ||
| 15 | Hydraulic motor power | 7.5kw | ||
