| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS25 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness:: | 0.8-.1.2mm | After Warranty Service:: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
|---|---|---|---|
| Roller Material:: | GCr15 | Warranty Of Core Components:: | 2 Years |
| Material Thickness:: | 0.75-1.2mm | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Voltage:: | 380V 50Hz 3Phases Or As Your Requirment |
| Main Motor Power:: | 5.5kw | ||
| Highlight: | Shockproof Light Steel Frame Machine,Hydraulic Cutting Light Steel Frame Machine |
||

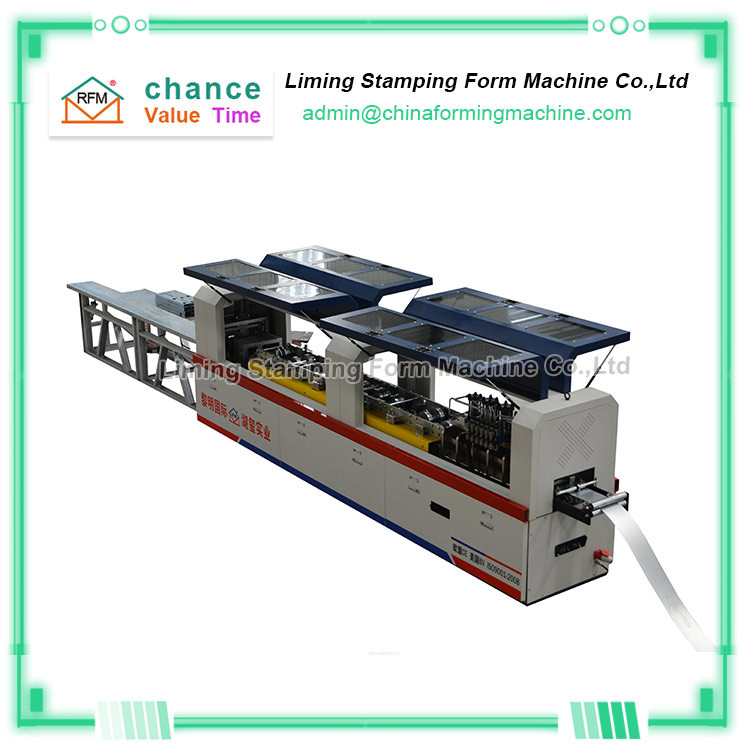

Shockproof And Dustproof Light Steel Villa Keel Forming Machine
The "shock-proof and dust-proof light steel villa keel forming machine" can produce special C-profiles, which can be used for 1-3 floors of light steel residential walls, floors and roof truss structures.
"Shockproof and dustproof light steel villa keel forming machine" is equipped with advanced Vertex BD architectural design software, which can automatically generate construction drawings, structural layouts, cutting lists and other material reports for wall panels and floors.
"Shockproof and dustproof light steel villa keel forming machine" By automating these processes, manufacturers can save time in drafting, material reporting, data entry, manufacturing and correcting all errors.
Technical parameters of Shockproof And Dustproof Light Steel Villa Keel Forming Machine
| Product Name | Shockproof and dustproof light steel villa keel forming machine |
| Uncoiler | 3 Tons |
| Cutting type | Hydraulic cutting |
| Control system | Motion controller system |
| Drive type | Gear transmission system |
| Thinkness | 0.8-1.2mm |
| High speed | High speed punching, cutting, swage system |
| Forming stations | 12 |
| Main motor power | 5.5KW |
| Forming speed | 30m/min |
| Technical Process: Uncoiler---Feeding Guide--- Dimple --- Bolthole --- Rounded --- Lipcut --- Webnotch --- Servicehole ---Roll | |
| Forming---Hydraulic Swage ---Hydraulic Cutting---Run Out | |
| 3D house building software (with machine) | |
| Cooling system | |
