| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS27 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Production Capacity:: | 25m/min |
|---|---|---|---|
| Use:: | Stud And Track Roll Forming Machine | Warranty Of Core Components:: | 2 Years |
| Material Thickness:: | 0.75-1.2mm | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Feature: | Low Energy Consumption |
| Usage: | Building | ||
| Highlight: | 700m/H Steel Frame Machine,4900*1000*1500mm Steel Frame Machine |
||

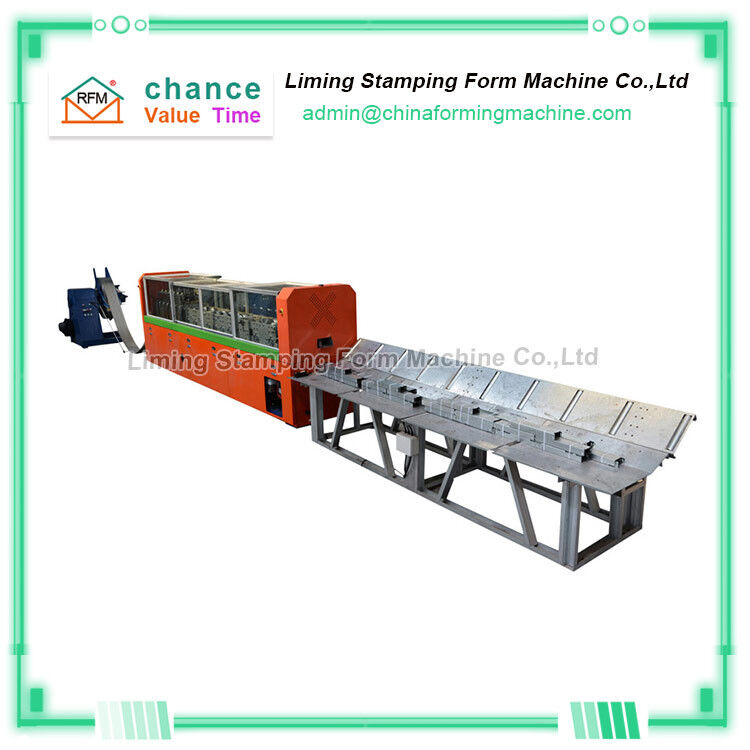

Quick Processing Light Steel Villa Keel Forming Machine
How to embody the six processes of the workbench of "Quick Processing Light Steel Villa Keel Forming Machine"?
"Quick Processing Light Steel Villa Keel Forming Machine"can be installed and used separately, but requires manual loading and unloading.
"Quick Processing Light Steel Villa Keel Forming Machine"can also be equipped with automatic loading rack and blank unloading manipulator, extruder, tile cutting machine, blank feeder and tile conveyor line. The production line basically does not require manual operation.
There are six processes in the workbench of"Quick Processing Light Steel Villa Keel Forming Machine", namely turning of hexagonal runner
Technical parameters of Quick Processing Light Steel Villa Keel Forming Machine
| Thickness | 0.58- 1.0mm(G300-G550Galvanzied coils and Aluzinc ) |
| Standard Producing speed | 300-700m/h |
| Max producing speed | 1500m/h |
| Main motor | 5.5kw |
| Power supplier | 380V 50Hz 3phases according to your request |
| Hydraulic station | 7.5kw |
| Hydraulic tank capacity | 100L |
| Hydraulic cooling | Fan cooling |
| Hydraulic pressure | Computer set |
| Host cordless remote control | Standard |
| Frame and punching dies | SNV ENV RF RW SNNF SNWF ENWF ENNF PRNFID |
| Product accuracy+- | 0.5mm |
| CNC inkjet-printer | EC-JET |
| Size | 4900*1000*1500mm |
| Weight | 5000kgs |
| Color | according to your request |
| De-colier | bearing 2 tonne, automatical decoiler |
