| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS29 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel Frame & Purlin Machine | Condition: | New |
|---|---|---|---|
| Work Pressure:: | 11-120mpa | Warranty Of Core Components:: | 2 Years |
| Power:: | 10KW | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Dimension(L*W*H):: | 20*1.5*2m |
| Production Capacity/8hours:: | 12000m, 12Ton Steel | ||
| Highlight: | Villa Keel Making Machine,20x1.5m Steel Framing Equipment,20x1.5m Keel Making Machine |
||

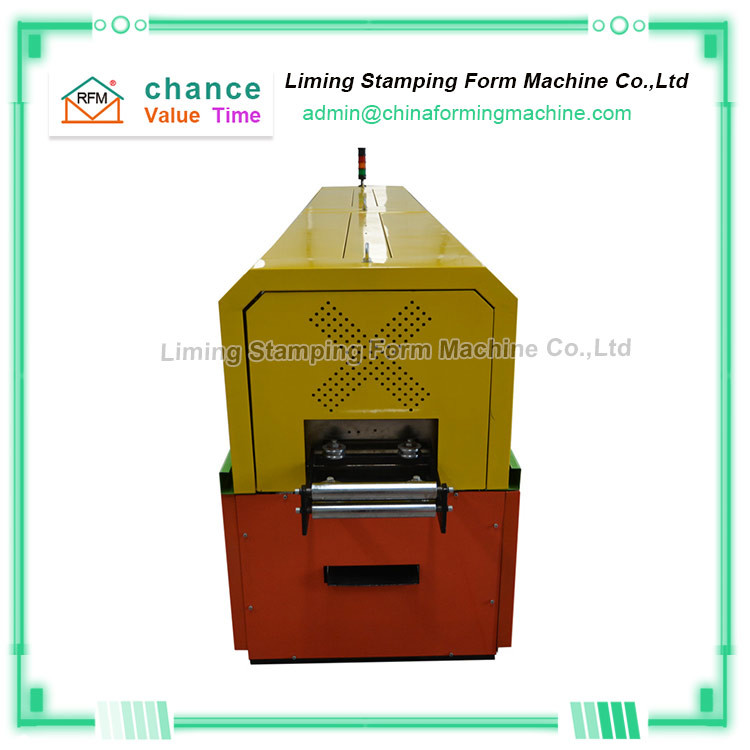

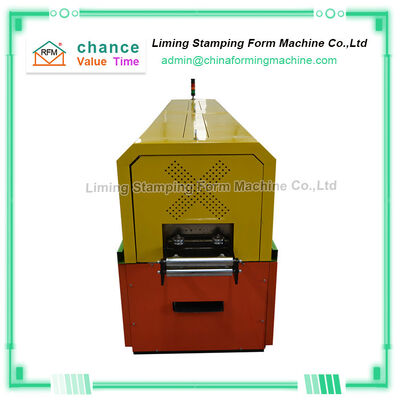

Beautiful And Applicable Light Steel Villa Keel Forming Machine
he workbench of the "beautiful and suitable light steel villa keel forming machine" has six processes, namely the turning of the hexagonal runner.
In addition to the first-level mechanical indexing and positioning, a set of precision positioning mechanisms are also provided to ensure each stamping process.
The precise positioning of the processing mold and the sliding table on which the mold is installed is a box-shaped structure. The sliding table guide rail and the upper guide rail of the fuselage have a long contact length. Each time the upper die is punched, the blank will be punched twice, that is, the upper die is pressed backward.
Raise the upper mold 10mm to completely empty the mud, then press the upper mold to the proper position and then return to a higher position. Therefore, the service life of the mold is long, and the quality of the pressed product is good.
"Beautiful and applicable light steel villa keel forming machine" will be equipped with a set of lubrication system. When the machine is running, it will automatically lubricate all bearings, the motion guides of the gearbox gear mechanism and other parts.
Technical parameters of Beautiful And Applicable Light Steel Villa Keel Forming Machine
| NO. | ITEM | Advantage |
| 1 | De-coiler | double-headed de-coilder in order to fast for strips coil |
| 2 | Roll forming machine | solid box structure and high precision working table |
| for good shape purlin forming and longer machine life | ||
| 3 | Cutting table | flying shear cutting system |
| 4 | Hydraulic station | output power stability |
| 5 | Electricity system | touch screen show all function and easy control product line and easy maintenance |
| 6 | Product transmission | fast output product |
