| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS31 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel Frame & Purlin Machine | Condition: | New |
|---|---|---|---|
| Work Pressure:: | 11-120mpa | Warranty Of Core Components:: | 2 Years |
| Weight:: | 12000KG | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Dimension(L*W*H):: | 15m*1.1m*1.2m | ||
| Highlight: | L15m Light Gauge Steel Machine,13 Stations Light Keel Roll Forming Machine,13 Stations Light Gauge Steel Machine |
||

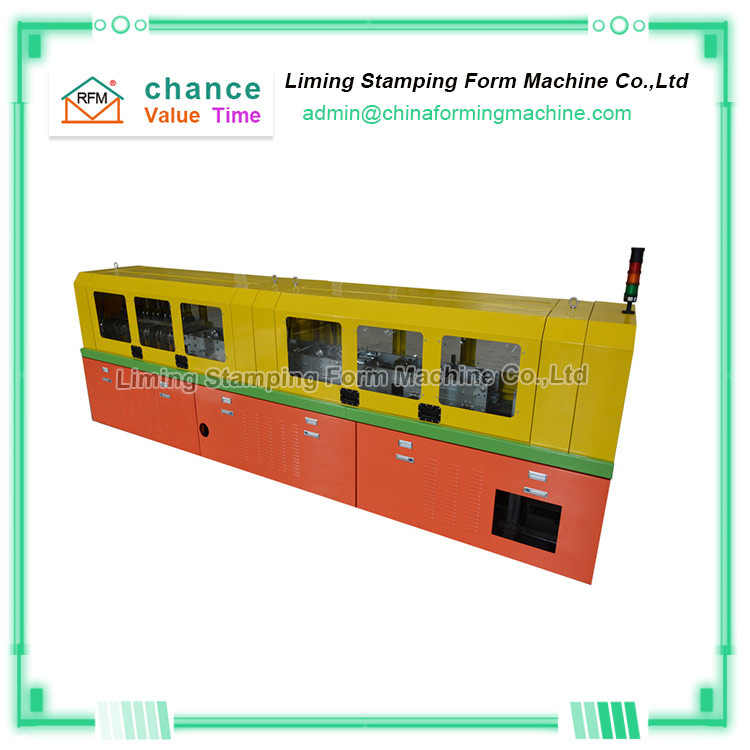

Light Steel Villa Keel Forming Machine With Construction Experience
"Light steel villa keel forming machine with construction experience" features:
"Light steel villa keel forming machine with construction experience" adopts all-copper motor, has a lower drive failure rate, and uses a foot switch with a step follower to control a smaller transmission power.
"Light steel villa keel forming machine with construction experience" is a simple machine that uses a high-efficiency blade shearing machine forged from high chromium steel and surrounded by a thick steel overall appearance blade welding machine.
"Light steel villa keel forming machine with construction experience" has good stability, optimized cutting drive design, convenient cutting, energy saving and electricity saving.
Technical parameters of Light Steel Villa Keel Forming Machine With Construction Experience
| 1 | Width of feeding material | 120/150/300mm coil sheet or customized |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 15-30 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 4.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
