| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS32 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Roller Material:: | Cr12 Mov Vacuum Heat Treadment 58-62hrc | Turkey Head Machine:: | One Set |
|---|---|---|---|
| Work Pressure:: | 11-120mpa | Warranty Of Core Components:: | 2 Years |
| Shaft Material:: | 40Cr | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Dimension(L*W*H):: | 15m*1.1m*1.2m | ||
| Highlight: | GL strip Light Gauge Steel Framing Machines,40Cr Shaft Light Gauge Steel Framing Machines |
||

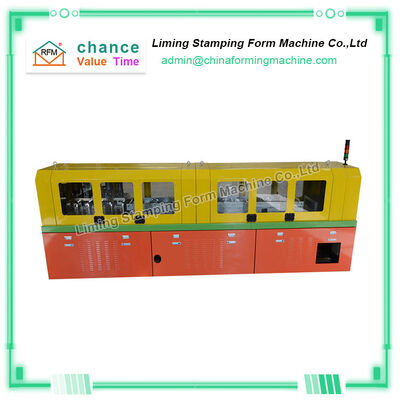

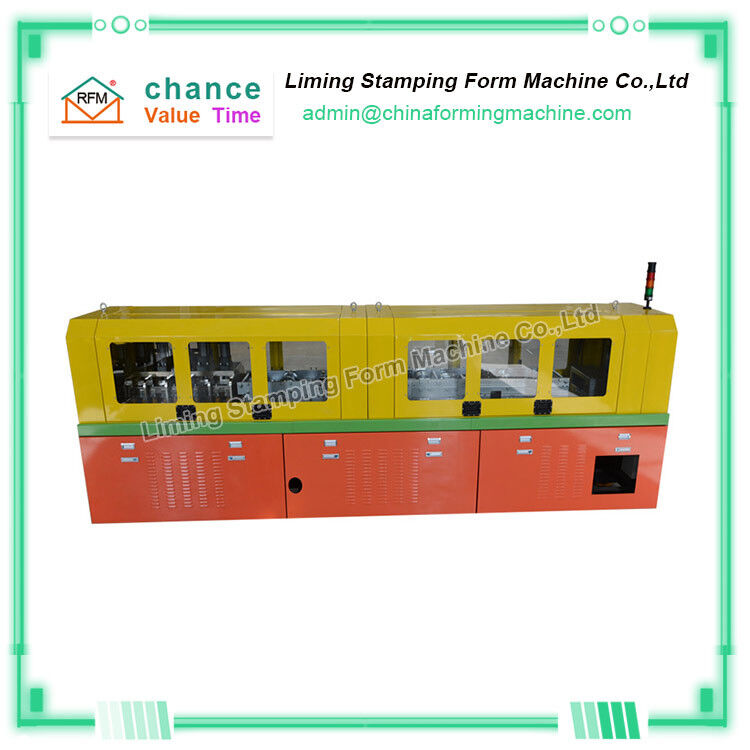

Corrosion-Resistant And Non-Rusting Light Steel Villa Keel Forming Machine
"Corrosion-resistant and non-rusting light steel villa keel forming machine" adopts large motors and low energy consumption;
Servo motor power is 7.5KW; hydraulic motor power is 3.75KW;
"Corrosion-resistant, non-rusting light steel villa keel forming machine" has high production efficiency: the production line speed is 35m/min (pressing speed: 15m/min).
"Corrosion-resistant, non-rusting light steel villa keel forming machine" completely breaks the traditional forming concept, will not jam, short forming time, neat products, small size, and convenient transportation.
"Corrosion-resistant and non-rusting light steel villa keel forming machine" is easy to install, easy to install, and has fire resistance.
Technical parameters of Corrosion-Resistant And Non-Rusting Light Steel Villa Keel Forming Machine
| NO. | Item | Specification | ||
| 1 | Profile demension | 140*41.5*9mmm | ||
| 2 | Feeding width | 233mm | ||
| 3 | Raw material | G300-G550 GI/GL strip(G450 recommended) | ||
| 4 | Thickness range | 0.8mm-1.4mm | ||
| 5 | Machine dimensions | 6000*1000*1500mm | ||
| 6 | Machine weight | 3.5T | ||
| 7 | Forming method | 12 steps | ||
| 8 | Drive mode | Gear+sprocket | ||
| 9 | Main motor | 7.5kw servo motor | ||
| 10 | Roller, puncher and cutting blade material | SKD11 | ||
| 11 | Main shaft material | 40 cr | ||
| 12 | Forming speed | 2400m/h | ||
| 13 | Punch tolerance | ±1mm | ||
| 14 | Cutting tolerance | ±0.75mm | ||
| 15 | Hydraulic motor power | 7.5kw | ||
