| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS33 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Work Pressu: | New | Warranty Of Core Components:: | 2 Years |
| Shaft Material:: | 40Cr | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Dimension(L*W*H):: | 15m*1.1m*1.2m | ||
| Highlight: | 89*41mm Profile Metal Forming Machine,40Cr Shaft Metal Forming Machine,40Cr Shaft Light Keel Roll Forming Machine |
||

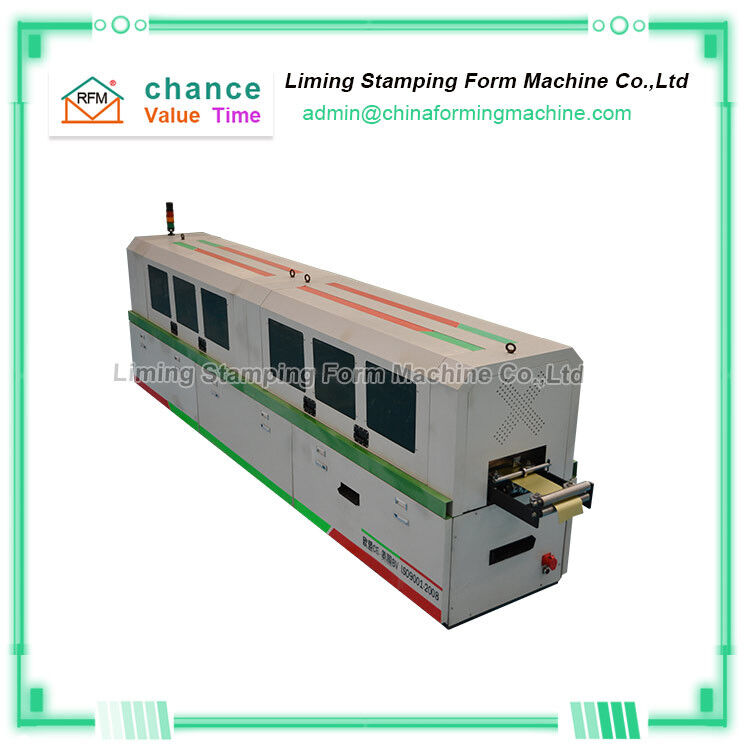

Light Steel Villa Keel Forming Machine With Construction Experience
"Light steel villa keel forming machine with construction experience"
"Light steel villa keel forming machine with construction experience" features:
"Light steel villa keel forming machine with construction experience" adopts all-copper motor, and the drive failure rate is low.
"Light steel villa keel forming machine with construction experience" adopts a foot switch with a step follower to reduce the transmission power control,
"Light steel villa keel forming machine with construction experience" uses a simple blade high-efficiency blade cutting machine made of high chromium steel. The overall appearance of the thick steel plate is surrounded by the blade welding machine.
"Light steel villa keel forming machine with construction experience" has good stability, optimized cutting drive design, convenient cutting, energy saving and electricity saving.
Since the "light steel villa keel forming machine with construction experience" cannot be loaded, we recommend that you choose to ship by container, and we all recommend this, so that the machine can be delivered more easily.
Technical parameters of Light Steel Villa Keel Forming Machine With Construction Experience
| Profile Size | 89*41 mm |
| Material Thickness | 0.75-1.2 mm (G300-G550 zinc plated, aluminumzinc plated) |
| Material Width | 182-183 mm |
| Maximum Line Velocity | 2880 m/h |
| General Production Efficiency | 300-700 m/h |
| Main Unit Power | 7.5 kw |
| Voltage | 380V, 50Hz, 3 phase (can be customized) |
| Hydraulic Power | 5.5 kw |
| Equipment Total Power | 16.7 kw |
| Hydraulic Cylindar Volumn | 120 L |
| Adjustment of Oil Pressure | Computer Setting |
| Main Unit Remote Control | Standard |
| Punching Dies | Dimple hole, chamfer cut, web noth, lip cut, service hole, swage, shear, bolt hole |
| Product Accuracy | 0.5 mm |
| Inkjet Printer | Standard |
| Machine Weight | 5000 kgs |
| Machine Color | Frame Mac Standard |
| Decoiler | Load 2000 kgs, auto decoiling, 3.7 kw |
