| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS34 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Control System:: | Automatic /human Interface Control | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Cutting Blade Material:: | SKD11 Vacuum Heatreadment 58-62hrc | Warranty Of Core Components:: | 2 Years |
| Drywall Coil Thickness:: | 0.2mm-0.8mm | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Dimension(L*W*H):: | 15m*1.1m*1.2m | ||
| Highlight: | 89mm Truss Forming Machine,Profile C Truss Forming Machine,3PH Light Gauge Steel Framing Machines |
||

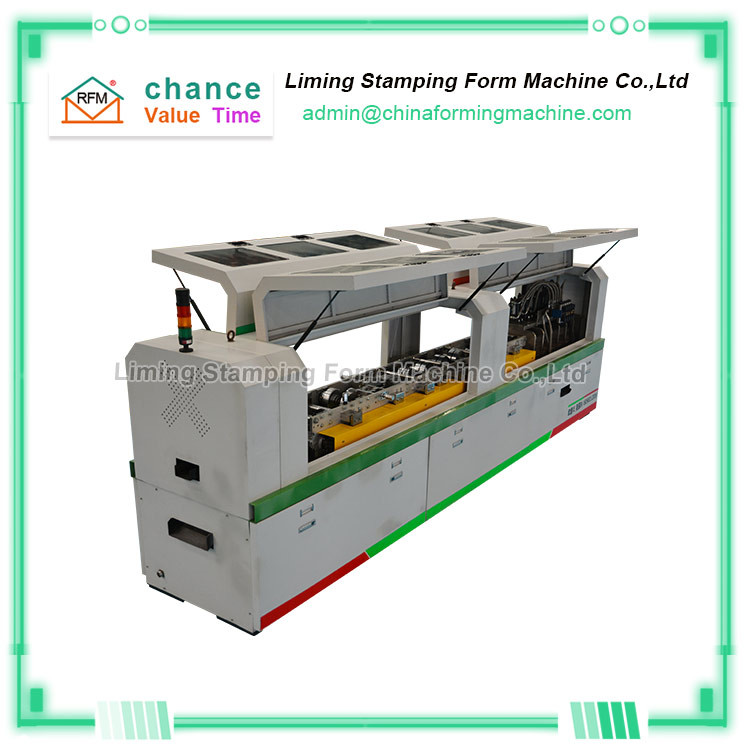

Profile C 89mm Light Rail Steel Frame Truss Wall Joist Roll Forming Machine
Features of "profile c 89mm light rail steel truss wall joist roll forming machine":
1. "Profile c 89mm light rail steel frame truss wall joist roll forming machine" runs smoothly with low noise
2. "Profile c 89mm light rail steel frame truss wall joist roll forming machine" has a compact structure, high efficiency and energy saving
3. "Profile c 89mm light rail steel frame truss wall joist roll forming machine" has a large transmission speed ratio and strong bearing capacity
4. "Profile c 89mm light rail steel frame truss wall joist roll forming machine" has good heat exchange performance and fast heat dissipation
5. "Profile c 89mm light rail steel frame truss wall joist roll forming machine" has strong sealing, good lubrication and durability
6. "Profile c 89mm light rail steel truss wall joist roll forming machine" maintenance, simple and fast
Technical parameters of Profile C 89mm Light Rail Steel Frame Truss Wall Joist Roll Forming Machine
| Size | 3850*800*1100mm |
| Weight | 2500KGS |
| Main Servo Motor Power | 7.5KW |
| Hydraulic Power for Punching & Cutting | 7.5KW |
| Forming Steps | 7 steps roll forming+2 steps reshaping |
| Processing Speed | Typical Drywall Panel Frame 600-720m/h |
| Roll Forming Speed without punch:2700m/h | |
| Over All Production Capacity:3-4tons/8hours | |
| Voltage | 380V/50HZ/3PH |
| Flange Height | 38mm |
| Web Width | 89mm |
| Lip Width | 9mm |
| Tolerence Of Cutting & Punching | ±0.5mm |
| Tolerence Of Forming | 0.75mm |
| Forming Thickness | 0.7mm -1.2mm |
| 2)Main Accessories: |
