| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS35 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Power:: | 5.5kw | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Cutting Blade Material:: | SKD11 Vacuum Heatreadment 58-62hrc | Warranty Of Core Components:: | 2 Years |
| Drywall Coil Thickness:: | 0.2mm-0.8mm | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Weight:: | 3.5T |
| Work Pressure:: | 12-16Mpa | ||
| Highlight: | 1500m/h Light Gauge Steel Framing Machines,3.5T Light Gauge Steel Framing Machines |
||

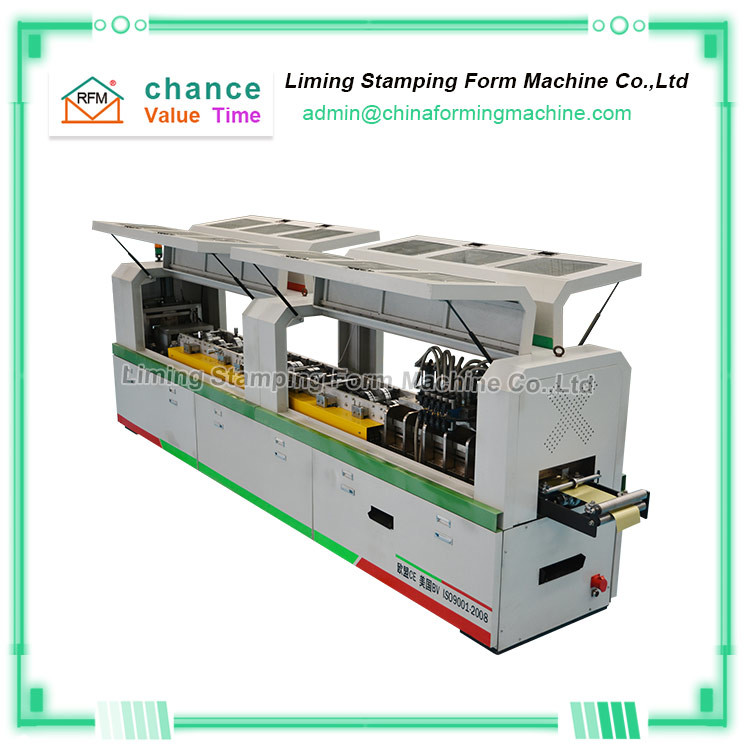

High-Speed Multi-Story Building Light Steel Design House Calender
Only the profiles produced by the "High-speed multi-story building light steel design house calender" are enough to build all the components of the walls, floors and roofs required by ordinary houses.
"High-speed multi-story building light steel design house calender" also has the following four characteristics:
1. "High-speed multi-story building light steel design house calender" continuous cutting, high production efficiency
2. "High-speed multi-story building light steel design house calender" no waste, no material loss
3. "High-speed multi-story building light steel design house calender" has fast induction speed and more precise cutting
4. "High-speed multi-story building light steel design house calender" has good high-speed performance and stable operation
Technical parameters of High-Speed Multi-Story Building Light Steel Design House Calender
| Size | 89*41mm or 140*38mm |
| Thickness | 0.6-1.2mm(G300-G550 Galvanzied coils and Aluzinc ) |
| Feeding width | 182mm |
| Standard Producing speed | 300-700m/h |
| Max producing speed | 1500m/h |
| Main motor | 5.5kw Servo motor |
| Power supplier | 380V 50Hz 3phases according to your request |
| Hydraulic station | 7.5kw Siemens Motor |
| Hydraulic tank capacity | 100L |
| Hydraulic cooling | Fan cooling |
| Hydraulic pressure | Manually set |
| Host cordless remote control | Standard |
| Frame and punching dies | Screw hole, chamfer, 15mm web hole, flange cut, 35mm pipe hole, suspension, cutting, |
| Product accuracy+- | 0.5mm |
| CNC inkjet-printer | Video Jet |
| Size | 4700*950*1200mm |
| Weight | 5000kg |
| Color | according to your request |
| De-colier | bearing 2 tonne, automatical decoiler |
