| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS36 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Model Number:: | C89 | Warranty Of Core Components:: | 2 Years |
| Drywall Coil Thickness:: | 0.2mm-0.8mm | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Voltage:: | 220V, 50Hz (it's Up To Customer) |
| Work Pressure:: | 12-16Mpa | ||
| Highlight: | 12 Steps Light Gauge Steel Machine,2800KGS Steel Frame Machine,2800KGS Light Gauge Steel Machine |
||

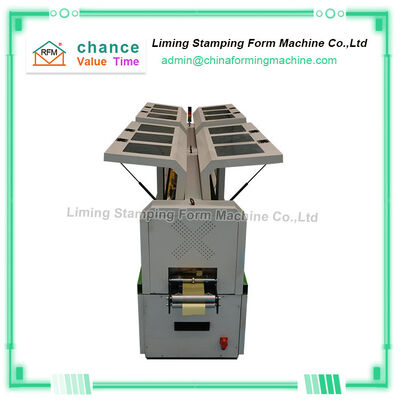

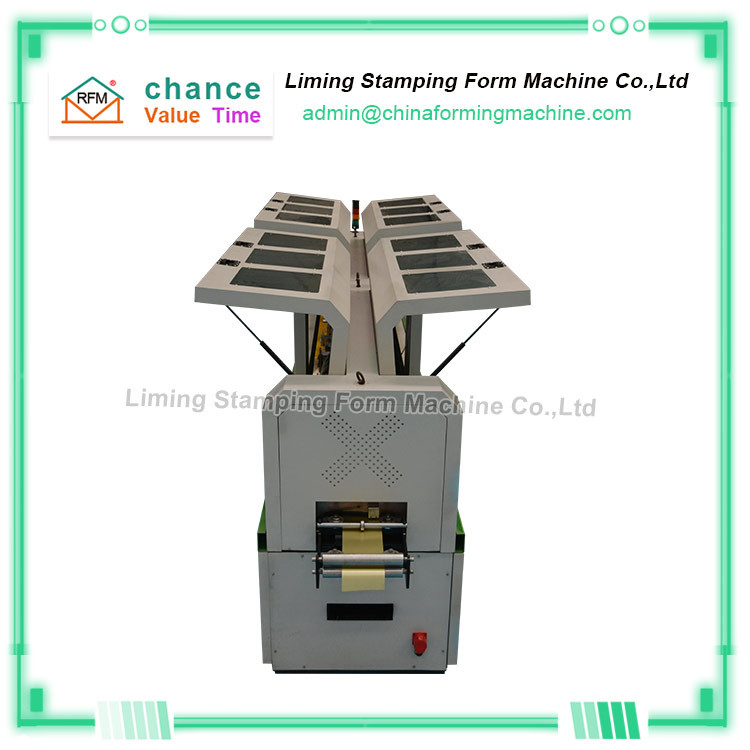

Light Gauge Steel Frame Roll Forming Machine For House Building
light gauge steel frame roll forming machine for house building is first formed and then stamped, which saves material, has high processing accuracy, and the error is within ±0.3mm, which is easy to assemble.
The patented profile design of light gauge steel frame roll forming machine for house building reduces the thickness and width of the steel used, greatly saving raw materials and reducing production costs.
light gauge steel frame roll forming machine for house building is exquisite, movable, space saving, easy to transport, and can realize nomadic production.
25 years of market verification and accumulation, the light gauge steel frame roll forming machine for house building has high stability, low failure rate and long service life.
Technical parameters of Light Gauge Steel Frame Roll Forming Machine For House Building
| Size | 3700*800*1100mm |
| Weight | 2800KGS |
| Main Servo Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5KW |
| Forming Steps | 10+2steps for reshaping |
| Processing Speed | 25-30m/min |
| Voltage | 380V/50HZ/3PH |
| Lip of C Profile | 10mm |
| Tolerence Of Forming | 0.75mm |
| Forming Thickness | 0.7-1.2mm |
| Height | 38mm |
| Width | 89mm |
