| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS37 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Coil Material:: | G550 | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Strip Width:: | 100~450mm | Warranty Of Core Components:: | 2 Years |
| Drywall Coil Thickness:: | 0.2mm-0.8mm | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Coil Inner Diameter:: | 430~590mm |
| Work Pressure:: | 12-16Mpa | ||
| Highlight: | G550 Coil Cold Bending Machine,0.5MM Accuracy Light Steel Frame Machine,G550 Coil Light Steel Frame Machine |
||

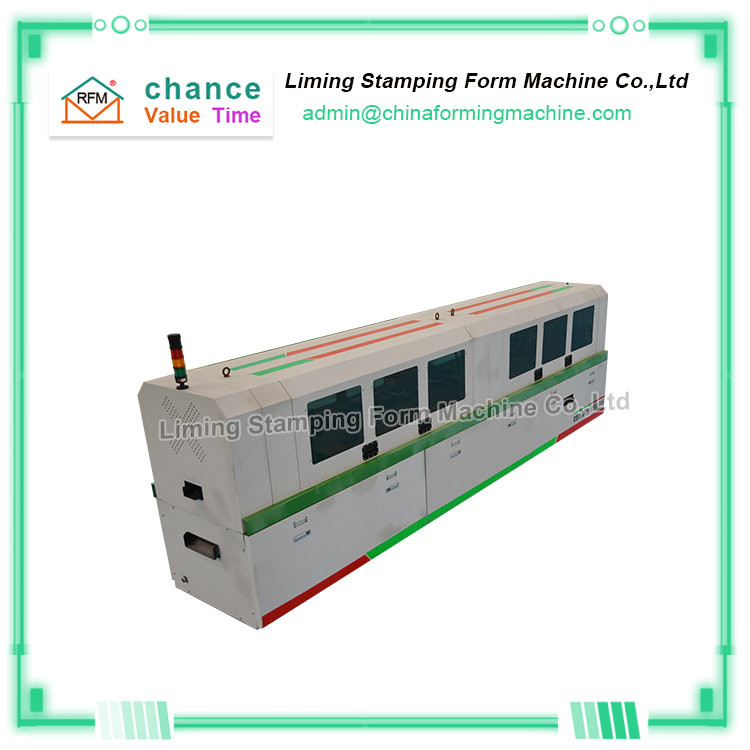

Light Steel Building Materials Cold Bending Machine
After 25 years of market verification and accumulation, the "light steel building materials cold bending machine" has the characteristics of high stability, low failure rate and long service life.
"Light steel building materials cold bending forming machine" adopts 220V single-phase electric drive and is not limited by power. Built-in cooling device supports continuous production.
"Light steel building materials cold bending forming machine" can complete punching, cutting, slotting and other functions without secondary processing.
The rivet connection of the "light steel building material cold forming machine" saves time and efficiency, and is more stable and durable.
The joints of the "light steel building materials cold bending forming machine" are flat and do not need to be cut, thereby improving the structural strength of the profile.
Technical parameters of Light Steel Building Materials Cold Bending Machine
| light steel building materials cold bending machine | |
| Profile Size | 89 x 41 MM |
| Material Thickness | 0.75 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated ) |
| Material Width | 182 183 MM |
| Maximum Line Velocity | 2800 M / H |
| General Production Efficiency | 300 - 700 M /H |
| Decoiler | With Servo Motor Cotroling; Power - 1.5 Kw ; Max load 2 Tons ; |
| Main Unit Power | 7.5 Kw |
| Voltage | 14.5 Kw |
| Hydraulic Power | 5.5 Kw |
| Equipment Total Power | 14.5 Kw |
| Hydraulic Cylinder Volumn | 120 L |
| Adjustment of Oil Pressure | Computer setting |
| Main Unit Remote Control | Standard |
| Punching Dies | Dimple,Chamfer cut,Web Notch,Lip Cut,Service Hole,Swage,Shear,Bolt hole |
| Product Accuracy | 0.5 MM |
| Inkjet Printer | Special |
| Machine Size | 4900 x 1000 x 1500 MM |
| Machine Weight | 4500 Kgs |
| Machine Color | FrameMac Standard |
