| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS38 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works |
|---|---|---|---|
| Condition:: | New | Warranty Of Core Components:: | 2 Years |
| Drywall Coil Thickness:: | 0.2mm-0.8mm | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Voltage:: | 380V 50HZ Or As Customed |
| Work Pressure:: | 12-16Mpa | ||
| Highlight: | T0.55mm Light Gauge Steel Framing Machines,16Mpa steel purlin machine,T0.55mm Steel Purlin Machine |
||

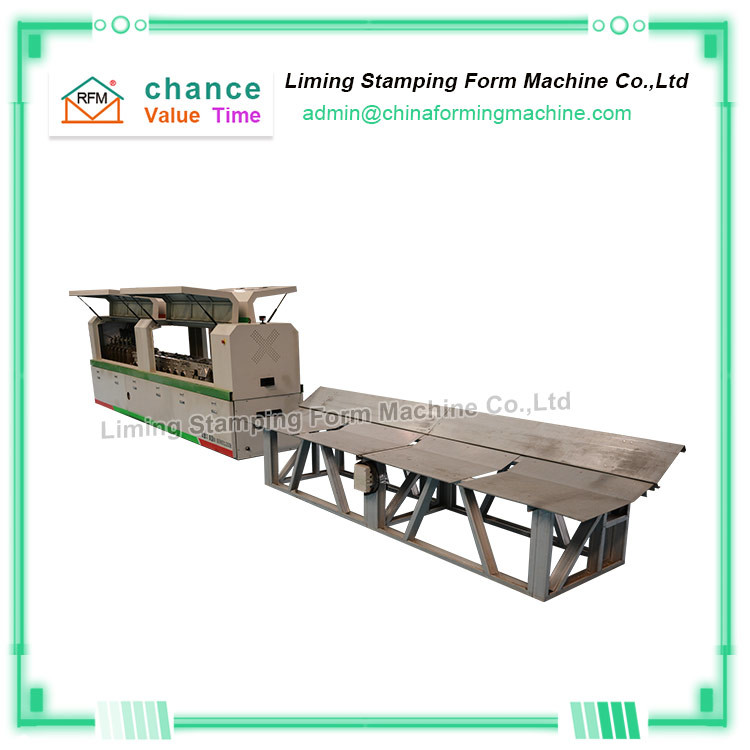

Light Steel Framing Machine Light Gauge Steel Roll Forming Machine
The joints of the "light steel framing machine light gauge steel roll forming machine" are flat and do not need to be cut, thereby improving the structural strength of the profile.
"light steel framing machine light gauge steel roll forming machine" has reasonable design, simple layout, adequate protection and convenient maintenance.
"Light steel frame forming machine" is produced on demand and assembled immediately.
"light steel framing machine light gauge steel roll forming machine" light steel frame thickness can be as low as 0.55mm, the average material used is 15-25kg/m2, which can save material.
Technical parameters of Light Steel Framing Machine Light Gauge Steel Roll Forming Machine
| 1.Weight capacity of decoiler | 3.5T |
| 2.Appearance Size(L*W*H) | 4000*800*800mm |
| 3.Raw material /feeding sheet material | colored steel & galvanized steel |
| 4.Roller material | 45# high grade steel |
| 5.Shaft material | 45# high grade steel |
| 6.Kind of drive | chain drive |
| 7.Cutting system | automatic hydyaulic cutting |
| 8.Cutting blade material | Cr 12 high grade steel |
| 9.Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11.Main power | 7 kw |
| 12.Roller stations | 100 rows per layer |
| 13.Speed of production | 15-30m/min |
| 14.Thickness of colored steel | 0.2-1.5mm |
| 15.Frame material | 360 H-steel |
