| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS42 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Cutting Type:: | Hydraulic Cutting |
|---|---|---|---|
| Motor Brand:: | Simence | Warranty Of Core Components:: | 2 Years |
| Cutting Width:: | 50-1200 | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Function:: | Light Gauge Steel Production Machine |
| Machinery Test Report:: | Provided | ||
| Highlight: | Prefabricated Light Gauge Steel Framing Machines,Villa House Light Gauge Steel Framing Machines,12 Meter / Minute light gauge steel machine |
||

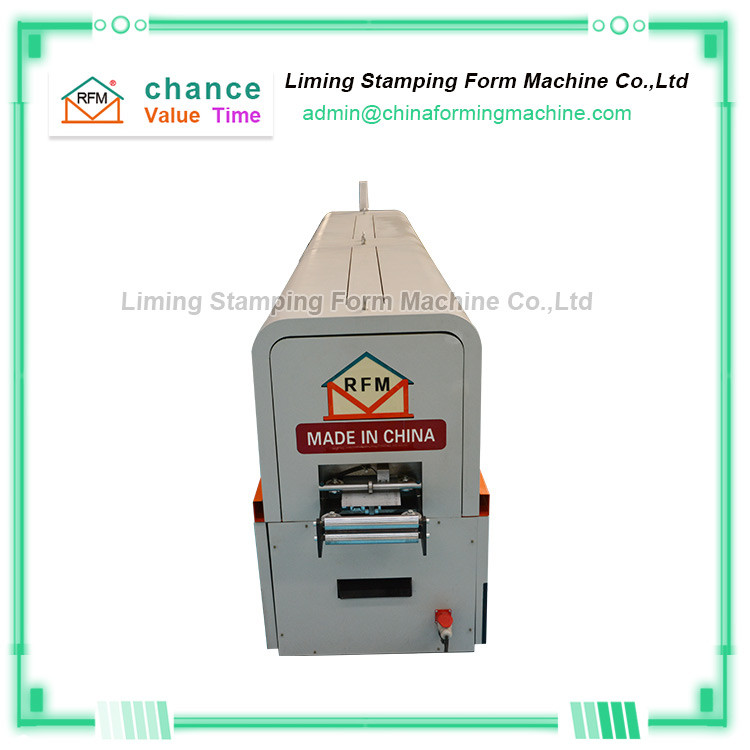

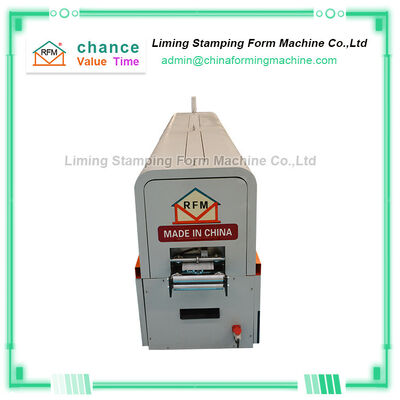

Villa House Prefabricated Light Gauge Steel House Roll Foming Machine
The "Villa House Prefabricated Light Gauge Steel House Roll Foming Machine" is equipped with advanced Vertex BD architectural design software, which can be used to generate special C channel contours, which can be used for 1-3 floors of light steel residential walls, floors and roof truss structures.
"Villa House Prefabricated Light Gauge Steel House Roll Foming Machine" intelligent coding, each component has its own "ID card", code installation, improve installation efficiency
The "Villa House Prefabricated Light Gauge Steel House Roll Foming Machine" is easy to operate. The company provides free training and free on-site installation.
"Villa House Prefabricated Light Gauge Steel House Roll Foming Machine" fault self-check and self-check, automatically prompt the fault point, high maintenance efficiency.
Technical parameters of Villa House Prefabricated Light Gauge Steel House Roll Foming Machine
| The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc. | |
| Model number | Light Gauge Steel Framing Roll Forming Machine |
| 3-4Material Thickness | 0.6-1.2mm |
| Product speed | 0-12meter / per minute |
| Roller Stations | About 15 stations |
| Roller Material | Gcr15 Steel with quenching |
| Shaft Material | 45# Advanced Steel (Diameter: 76mm), thermal refining |
| Material Of Cutting | CR12Mov with quench treatment |
| Electronic control | PLC control with touch screen |
| Weight | About 15 tons |
