| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-slitting 2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Machine Frame:: | 350h Steel | Material Thickness(mm):: | 0.5 - 3 Mm |
|---|---|---|---|
| Cutting Width (mm):: | 100 - 1000 Mm | Cutting Speed(m/min):: | 60 - 120 M/min |
| Production Experience:: | 25 Years | Feeding Width:: | 900mm |
| After Warranty Service:: | Video Technical Support | Roller Material:: | 45#steel Chrome Plated |
| Warranty:: | 2 Years | Dimension(L*W*H):: | 1000*900*1200MM |
| Highlight: | 60m/Min Coil Slitting Line,Rolled Sheet Slitter Rewinder Machine,60m/Min Slitter Rewinder Machine |
||

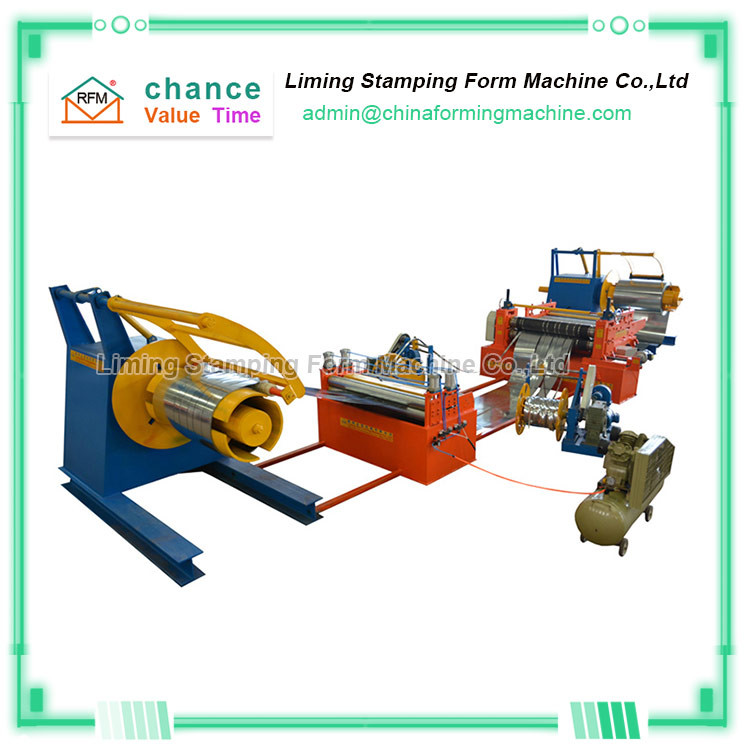

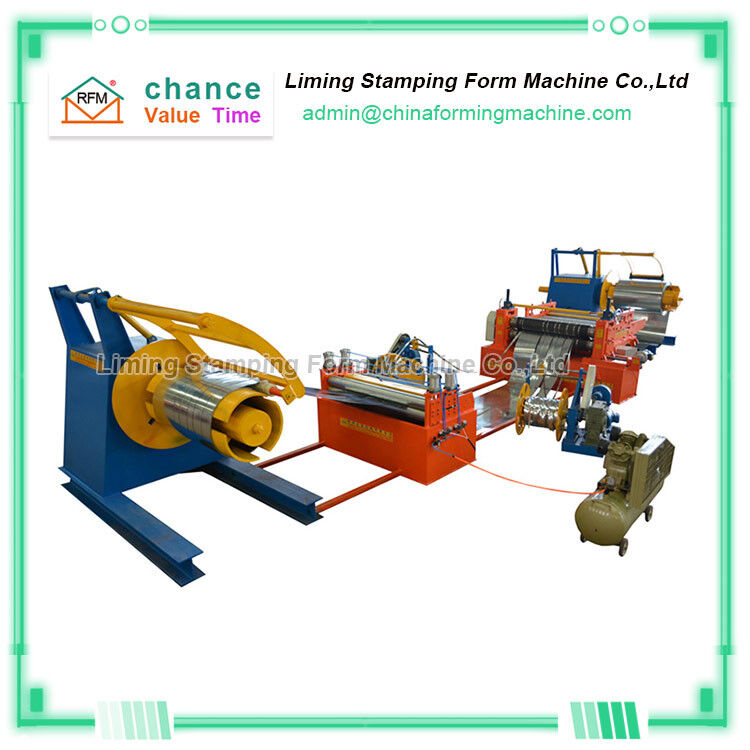

Cold Rolled Sheet Slitting And Rewinding Line
"Cold rolled sheet slitting and rewinding line" is a special equipment for cold-rolled sheet metal uncoiling, slitting and rewinding. It is usually equipped with a feeding car, uncoiling, feeding, disc blade slitting machine, damping pre-indexing, rewinding device, and unloading. External devices such as feeding carts, control systems, etc. can be fed by a rough calibration mechanism at the back;
"Cold rolled sheet slitting and rewinding line" can also be equipped with two slitting units according to customer needs, one for one use and one for half. When one person works online, the other is to replace the blade gasket and gasket sleeve for maintenance and repair, which greatly improves the work efficiency of the production line, increases the output and reduces the cost.
"Cold rolled sheet slitting and rewinding line" applicable materials: cold-rolled sheet, electrolytic galvanized sheet, hot-dip galvanized sheet, color coated sheet, stainless steel sheet, aluminum sheet, copper sheet, etc.
"Cold rolled sheet slitting and rewinding line" is a series of flattening equipment with a thickness of 0.18-25mm and a width of 200-2500mm, and a series of slitting machines with a thickness of 0.25-16mm and a width of 200-2500mm.
Main parameters of Cold Rolled Sheet Slitting And Rewinding Line
| Name | Unit | Optional range |
| Plate thickness | mm | 0.3-1.5 0.4-2.0 0.5-3.0 0.8-4.0 |
| Standard width | mm | 1000 1300 1600 1800 |
| Uncoiled weight | T | 6-25 |
| Slitting width precision | mm | ±0.05-0.15 |
| Max, slitting number | pcs | 5-25 |
| Highest line speed | m/min | 50-120 |
| Total power | Kw | 50-200 |
