| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-slitting 4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Machine Frame:: | 350h Steel | Material Thickness(mm):: | 0.5 - 3 Mm |
|---|---|---|---|
| Cutting Width (mm):: | 100 - 1000 Mm | Cutting Speed(m/min):: | 60 - 120 M/min |
| Materials:: | High Strength Steel | Advantages:: | High Efficent |
| Leveling Precision(±mm/m):: | 5 ±mm/m | Key Selling Points:: | Easy To Operate |
| Warranty:: | 2 Years | Rated Power:: | 55kw |
| Highlight: | 55kw Coil Slitting Line,Cold Steel Coil Slitting Machine,55kw Steel Coil Slitting Machine |
||

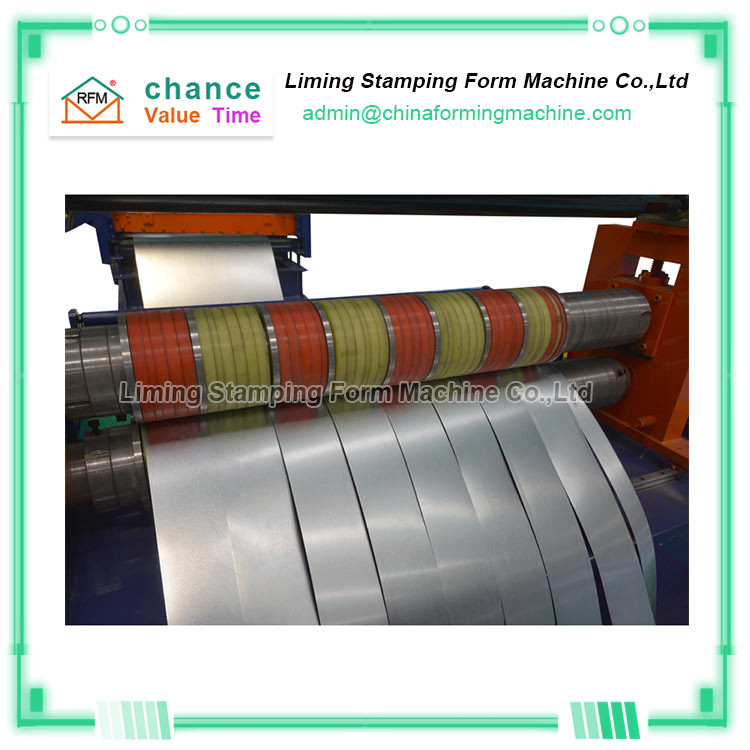

Stainless steel color steel slitting and slitting production line
"Stainless steel color steel slitting and slitting production line" is used to unwind, level and cut stainless steel coils of different specifications into flat plates of required length.
"Stainless steel color steel slitting and slitting production line" has reasonable wiring, convenient operation and high degree of automation. After electroplating or painting, various stainless steel plates, color plates, aluminum plates and various metal plates can be processed.
"Stainless steel color steel slitting and slitting production line" is widely used in metal sheet processing industries such as automobiles, containers, household appliances, food, packaging, and building materials.
"Stainless steel color steel slitting and slitting production line" is mainly composed of feeding trolley, double support decoiler, hydraulic shovel head pressing mechanism, pressing mechanism, straightening machine, servo sizing mechanism, pneumatic clutch shearing machine, and belt Conveyor, pneumatic blanking rack, unloading truck, electric hydraulic system, etc. At the same time, there is a raceway table and deviation correction device between each machine.
Main parameters of Stainless steel color steel slitting and slitting production line
| Suitable material | Cold steel,galvanized steel |
| Tensile strength | σb≤440Mpa,σ0.2≤280Mpa |
| Coil thickness | 0.4-3.0mm |
| Coil width | 1500mm(Max.) |
| I.D. of coil | 508mm |
| O.D. of coil | 1600mm(Max.) |
| Coil Weight | 15T(Max.) |
