| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-slitting 5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Machine Frame:: | 350h Steel | Material Thickness(mm):: | 0.2 - 1 Mm |
|---|---|---|---|
| Cutting Width (mm):: | 10 - 9999 Mm | Cutting Speed(m/min):: | 10 - 120 Mm |
| Materials:: | High Strength Steel | Advantages:: | High Efficent |
| Leveling Precision(±mm/m):: | 5 ±mm/m | Key Selling Points:: | Easy To Operate |
| Warranty:: | 2 Years | Rated Power:: | 55kw |
| Highlight: | 120m/Min Coil Slitting Machine,350h Steel Sheet Metal Cutting Machine,120m/Min Sheet Metal Cutting Machine |
||
Heavy Sheet Metal Multifunction Cutting To Length Slitting Shearing Machine
"Heavy sheet metal multifunction cutting to length slitting shearing machine " actually refers to the main equipment commonly referred to as the slitting unit.

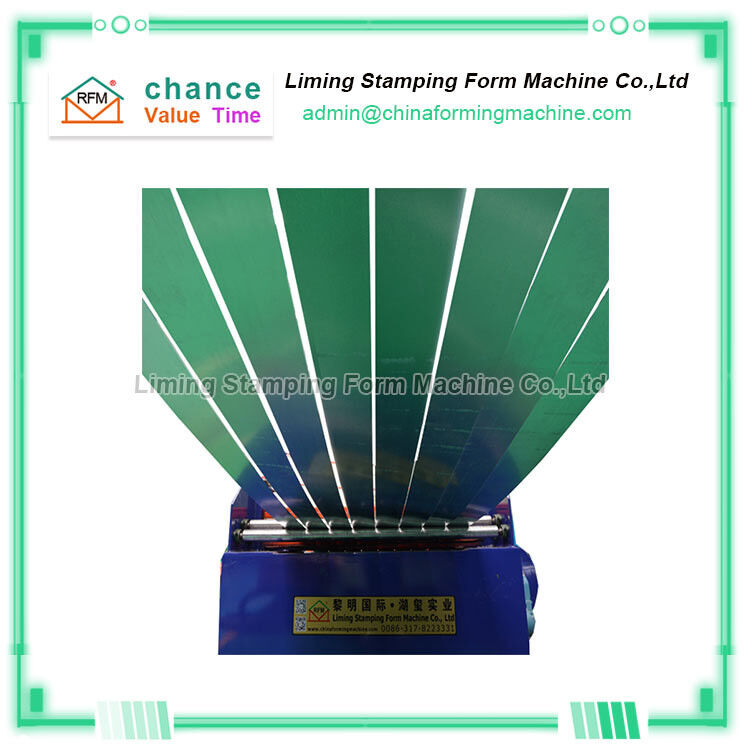

Under the action of the "heavy sheet metal multifunction cutting to length slitting shearing machine " , wide roll materials of different sizes can be cut into strips of various widths according to specified requirements. These strips are then collected into small rolls for use in the next process. It can be said that the slitting machine equipment is the necessary equipment for precision cutting of transformers, motor industries and other metal strips.
"Heavy sheet metal multifunction cutting to length slitting shearing machine " can process and cut various coil materials such as tinplate, galvanized iron, cold-rolled steel strip, silicon steel sheet, stainless steel strip, aluminum strip, and steel strip.
In order to meet the production requirements, the "heavy sheet metal multifunction cutting to length slitting shearing machine " is divided into thin plate slitting lines and thick plate slitting lines according to the thickness of the slitting board. According to the different cutting materials, it can be divided into stainless steel slitting line, copper strip slitting line, cold plate slitting line, silicon steel slitting line, etc.
In addition, under different production conditions, the degree of automation of the "heavy sheet metal multifunction cutting to length slitting shearing machine " is also different. For example, some are fully automatic slitting lines, and some are semi-automatic slitting lines. For example, for pipe making machine customers, they can use the slitting line to obtain the required size, and then use the pipe making machine to obtain the pipe of the required size.
Main parameters of Heavy Sheet Metal Multifunction Cutting To Length Slitting Shearing Machine
| Processing Thickness | 0.3~4.5mm |
| Processing Width | 600-1600mm |
| Slitting Accuracy | ±0.15 mm |
| Slitting Speed | 120m/min |
| Coil Inner Diameter | 500/610 mm |
| Coil Outer Diameter | ≤2000 mm |
| Max. Slitting Numbers | 6-22pcs |
| Slitting Coil Width | ≥20 mm |
