| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 41 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Machine Frame:: | 350h Steel | Type:: | Tile Forming Machine |
|---|---|---|---|
| Tile Type:: | Colored | Production Capacity:: | 15 M/min |
| Materials:: | High Strength Steel | Advantages:: | High Efficent |
| Leveling Precision(±mm/m):: | 5 ±mm/m | Key Selling Points:: | Easy To Operate |
| Warranty:: | 2 Years | Rated Power:: | 55kw |
| Highlight: | PPGL Roofing Sheet Roll Forming Machine,55kw Iron Sheet Making Machine,55kw Roofing Sheet Roll Forming Machine |
||

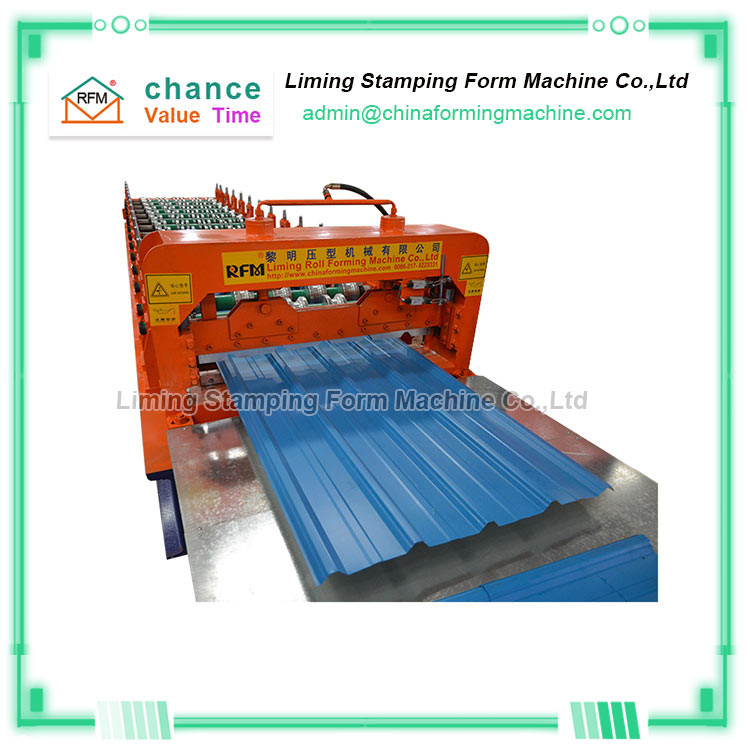

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Under current market trends, aesthetics, robustness and practicality are still themes. Under this theme, "Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine " itself is highly consistent with this theme. Therefore, the market share of "metal roof corrugated iron plate rolling machine" is still growing.
Since the colored steel plate produced by the "Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine " is light in weight, has good thermal insulation performance, low thermal conductivity and high strength, if the building is used as a building material in the housing field, beams and columns can be omitted in structure , Thereby saving part of the cost.
In addition, houses built with colored steel plates produced by the "Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine " usually have very bright colors, which makes the surface look beautiful without decoration.
Therefore, "Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine " is very suitable for modern people's choice.
Main parameters of Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000mm | |
| Thickness | 0.2-0.8mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 11 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| H steel | 300 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1300mm*1500mm | |
| Weight(About) | 2.5 tons | |
| Length measurement | Encoder | |
| Control mode | PLC | |
| Operating mode | Button + Touch screen | |
