| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 43 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant | Type:: | Tile Forming Machine |
|---|---|---|---|
| Tile Type:: | Colored | Production Capacity:: | 15 M/min |
| Weight:: | 3t | Advantages:: | High Efficent |
| Core Components:: | Motor, PLC | Roller Stations:: | 9/12rows Of Rollers |
| Warranty:: | 2 Years | Voltage:: | 220V/380V |
| Highlight: | 16 Stations Iron Sheet Making Machine,Galvanized Iron Sheet Making Machine,16 Stations steel roof sheet making machine |
||

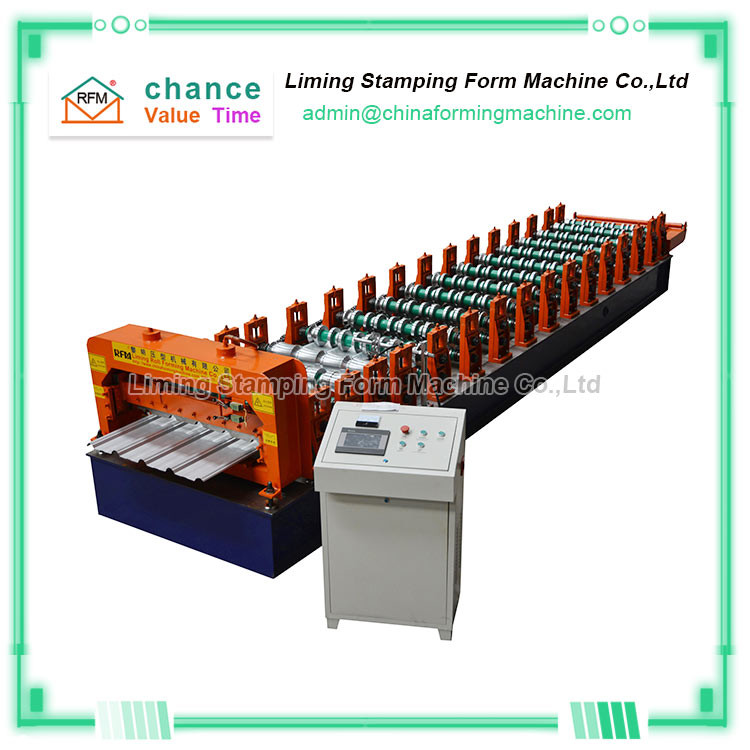

Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine
The color steel plate roof panel produced by "metal roofing sheet roll forming machine iron roofing sheet making machine" has the following five characteristics:
1. The color steel roof panel produced by "metal roofing sheet roll forming machine iron roofing sheet making machine" is light: 10-14 kg/m2, equivalent to 1/30 of the brick wall.
2. Color steel roof panel heat insulation produced by "metal roofing sheet roll forming machine iron roofing sheet making machine"
3. The color steel roof panel produced by the "metal roofing sheet roll forming machine iron roofing sheet making machine" has high strength: it can be used as a load-bearing, bending and compression ceiling support structure panel; ordinary houses do not use beams and columns.
4 "Metal roofing sheet roll forming machine iron roofing sheet making machine" produces brightly colored colored steel roof panels: no surface decoration is required, and the anticorrosive layer of the colored galvanized steel sheet can be maintained for 10-15 years.
5. The color steel roof panels produced by "metal roofing sheet roll forming machine iron roofing sheet making machine" are flexible and quick to install: the construction period can be shortened by more than 40%.
Main parameters of Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine
| No | Item | Description |
| 1 | Coil | Width:1250mm |
| 2 | Forming speed | 8-15 m/min&1-4m/min (not including cutting time) |
| 3 | Roller Stations | 15&16stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack |
| 6 | Material of Shaft | 80 mm 45#steel forged |
| 7 | Driven Motor Power | 7.5KW |
| 8 | Hydraulic Station Power | 11 KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | Taida PLC |
| 11 | Dimension (L*W*H) | 7300*1550*1200mm |
| 12 | Material of Cutter | GCr12 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.3-0.8mm |
| 15 | Power Supply | 380V, 60HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
