| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 45 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting | Type:: | Tile Forming Machine |
|---|---|---|---|
| Roller:: | 45# Steel | Production Capacity:: | 15 M/min |
| Dimension(L*W*H):: | 6000*1300*1100mm | Tile Type:: | Colored Steel |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant | Roller Stations:: | 9/12rows Of Rollers |
| Warranty:: | 2 Years | Key Selling Points:: | High-accuracy |
| Highlight: | Tr5 Roofing Sheet Roll Forming Machine,Tr4 Roofing Sheet Roll Forming Machine,Tr4 roofing sheet forming machine |
||

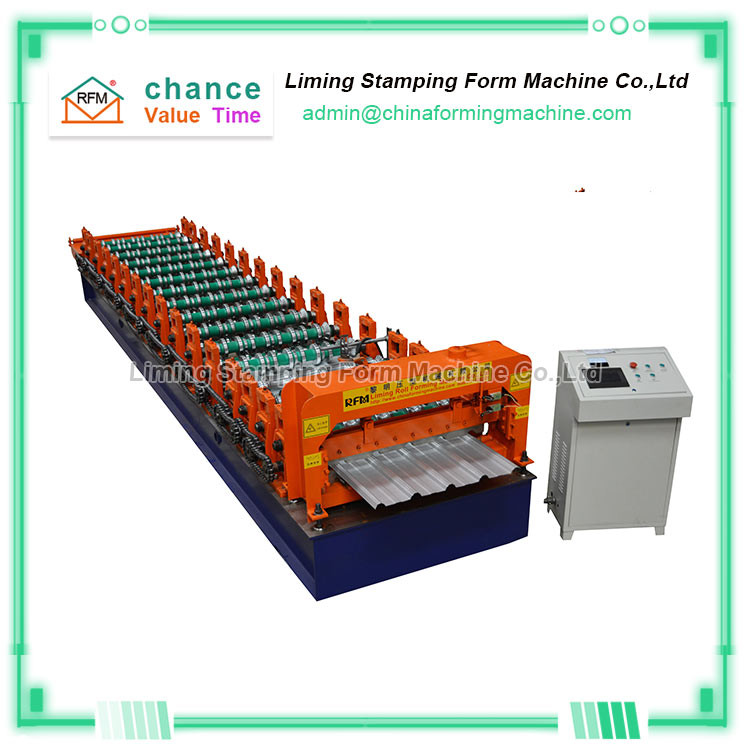

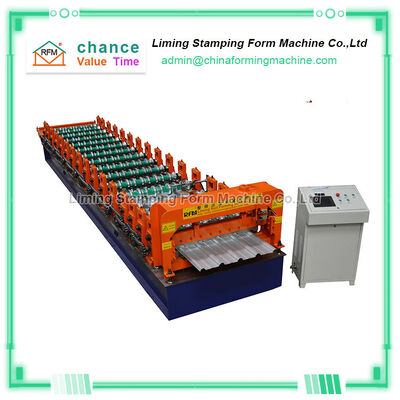

Tr4 Tr5 Corrugated Metal Roofing Sheet Making Machine
What is the purpose of the color steel plate produced by Tr4 Tr5 Corrugated Metal roofing sheet making machine ?
1. The base material of color steel plate produced by "Tr4 Tr5 Corrugated Metal roofing sheet making machine " can be divided into cold rolled base material, hot dip galvanized base material and electro-galvanized base material.
2. The coating types of color steel plates produced by "Tr4 Tr5 Corrugated Metal roofing sheet making machine "can be divided into: polyester, silicon modified polyester, vinylidene fluoride, plastisol.
3. The color of the color steel plate produced by"Tr4 Tr5 Corrugated Metal roofing sheet making machine "can be divided into many types according to user requirements, such as orange, cream, dark sky blue, sea blue, deep red, brick red, ivory, porcelain blue Wait
4. The surface condition of the color steel plate produced by"Tr4 Tr5 Corrugated Metal roofing sheet making machine " can be divided into coated plate, embossed plate and printed plate.
5. The colored steel plates produced by the"Tr4 Tr5 Corrugated Metal roofing sheet making machine " used in the market are mainly divided into three parts: construction, household appliances and transportation. The construction industry accounts for the largest proportion, followed by the household appliance industry, while the transportation industry accounts for a small proportion.
Main parameters of Tr4 Tr5 Corrugated Metal Roofing Sheet Making Machine
| Tr4 Tr5 Corrugated Metal roofing sheet making machine | |||
| Raw Material | mm | up layer 1000 | |
| down layer 1000 | |||
| effective width | mm | up layer 820 | |
| down layer 836 | |||
| thickness | mm | 0.3-0.8 | |
| Main Roll Forming Machine | roller material | 45# steel plated with chrome | |
| diameter of shaft | mm | 70 | |
| roller station | steps | up layer 16 | |
| down layer16 | |||
| Main Configuration | main motor power | kw | 5.5 |
| hydraulic station power | Kw | 4 | |
| control system | PLC brand | Mitsubishi | |
