| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 47 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting | Raw Material Thickness:: | 0.3-1.2mm |
|---|---|---|---|
| Key Selling Points:: | Easy To Operate | Production Capacity:: | 15 M/min |
| Dimension(L*W*H):: | 6000*1300*1100mm | Feeding Material:: | Color Steel Coils |
| Effictive Width:: | 850mm | Use: | ROOF |
| Warranty:: | 2 Years | Raw Material Width:: | 1000mm |

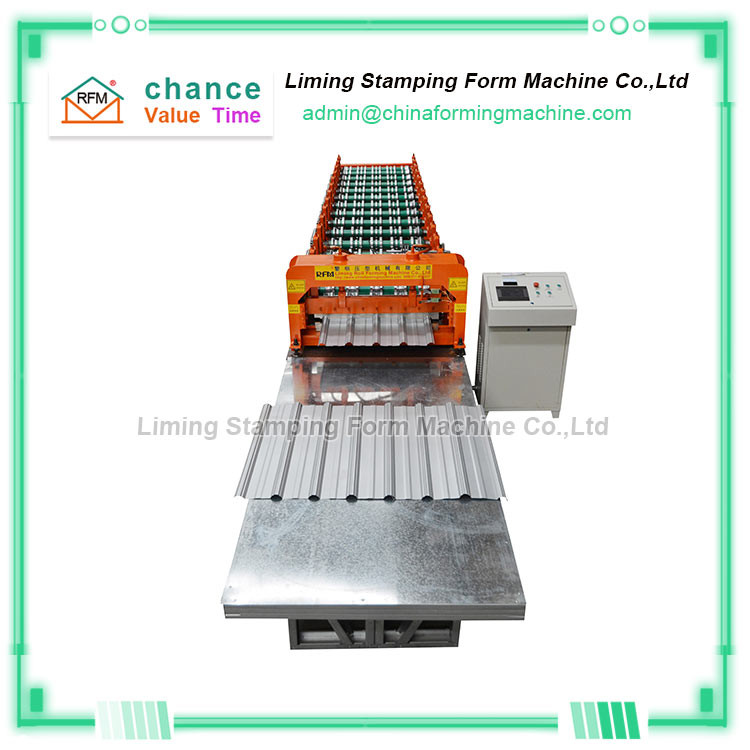

Steel Roofing Sheet Interlocking Tile Making Roll Forming Machine Prices
Introduction ofSteel Roofing sheet interlocking tile making roll forming machine prices:
"Steel Roofing sheet interlocking tile making roll forming machine prices", also known as colored special-shaped tile forming machine, uses color-coated steel, cold-rolled steel, and hot-dip galvanized steel as the base material. The surface is degreasing, phosphating, and after chromate treatment, The organic coating is baked into the steel plate, and then it is specially pressed into various forms of light board forming machines.
Features of "Steel Roofing sheet interlocking tile making roll forming machine prices":
"Steel Roofing sheet interlocking tile making roll forming machine prices" has the characteristics of light weight, high strength, rich color, convenient and quick construction, earthquake resistance, fire prevention, rain resistance, long life and maintenance-free.
Application of"Steel Roofing sheet interlocking tile making roll forming machine prices":
"Steel Roofing sheet interlocking tile making roll forming machine prices" is suitable for industrial and civil buildings, warehouses, special buildings and large-span steel structure roofs, walls and interior and exterior wall decoration. It is now widely used.
Main parameters of Steel Roofing Sheet Interlocking Tile Making Roll Forming Machine Prices
| Steel Roofing sheet interlocking tile making roll forming machine prices | ||
| 1 | Style | used metal roof panel roll forming machine |
| 2 | Machine dimension (mm) | 6500*1500*1200 |
| 3 | Total wight (Kg) | 3500 |
| 4 | Forming steps | 13 rows |
| 5 | Forming speed (m/min) | 8-12 |
| 6 | Hydraulic station power(Kw) | 4 |
| 7 | Diameter of shaft (mm) | 75 |
| 8 | Hydraulic pressure(MPa) | 18-20 |
| 9 | Electric condition | 380V/3Phase/ 50HZ |
| 10 | Suitable to process | Color steel plate(G330 or G350) |
| 11 | Decoiler max capacity (Kgs) | 10000 |
| 12 | Control system | PLC |
| 13 | Raw material thickness (mm) | 0.3-0.8 |
| 14 | Effective width(mm) | 750 |
| 15 | Material width(mm) | 1000 |
| 16 | Main application | tile roof |
