| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 48 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting | Raw Material Thickness:: | 0.3-0.8mm |
|---|---|---|---|
| Key Selling Points:: | Easy To Operate | Production Capacity:: | 20-25m/min |
| Dimension(L*W*H):: | 6.7*1.45*1.51m | Feeding Material:: | Color Steel Coils |
| Effictive Width:: | 850mm | Use: | ROOF |
| Warranty:: | 2 Years | Raw Material Width:: | 1000mm |
| Highlight: | G550 Mpa Roofing Sheet Roll Forming Machine,Hydraulic Cutting Roofing Sheet Roll Forming Machine,G550 Mpa roof sheet rolling machine |
||

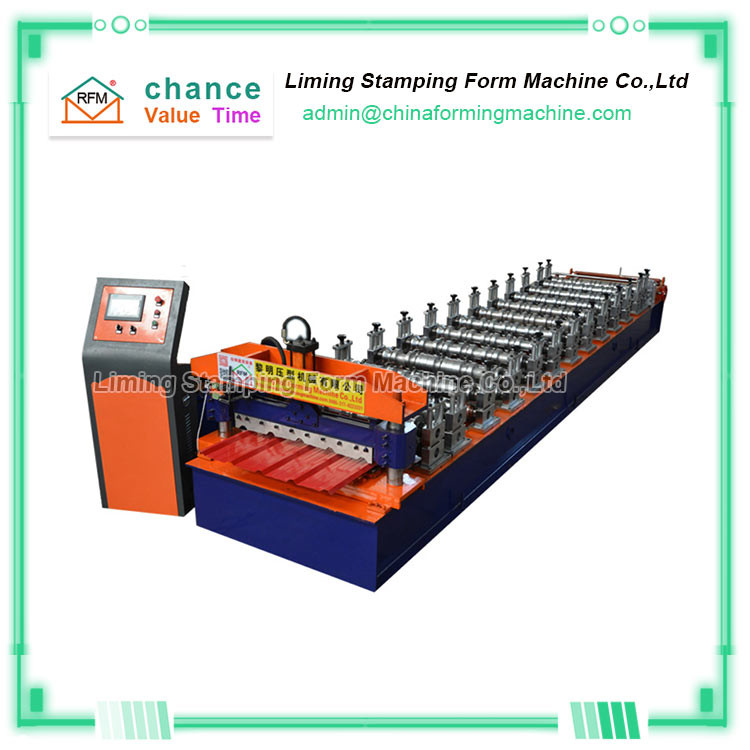

G550 Mpa Plate Run Roofing Sheet Roll Forming Machine
In countries such as Indonesia, Vietnam, Myanmar and Malaysia, "G550 Mpa Plate Run Roofing Sheet Roll Forming Machine" is very popular.
"G550 Mpa Plate Run Roofing Sheet Roll Forming Machine" can use color steel plate, galvanized steel plate and aluminum zinc plate, the thickness is 0.3-0.6mm.
All data of "G550 Mpa Plate Run Roofing Sheet Roll Forming Machine" are adjustable and can be set in adjustable steps in the PLC computer program (Delta or Mitsubishi).
We also provide "G550 Mpa Plate Run Roofing Sheet Roll Forming Machine" electronic control system in English, Spanish, Russian, French, Arabic, Japanese, Korean and other operating languages according to customer requirements.
"G550 Mpa Plate Run Roofing Sheet Roll Forming Machine" has the characteristics of light weight, high strength, rich colors, convenient and quick construction, earthquake resistance, fire prevention, rainproof, long life, maintenance-free and so on.
Main parameters of G550 Mpa Plate Run Roofing Sheet Roll Forming Machine
| 1 | Suitable to process: | Color steel |
| 2 | Width of the raw material : | 1200 |
| 3 | Output width: | 1000 |
| 4 | Rollers: | 16 rows |
| 5 | Power : | 4kw+4kw |
| 6 | Thickness of the plate: | 0.3-0.8mm |
| 7 | Productivity: | Productivity 12-15m/min or 25-35m/min by hydraulic motor |
| 8 | Diameter of the roller: | 72mm |
| 9 | Weight About: | 4 T |
| 10 | Voltage: | 380V 50Hz 3phase |
| 11 | Received table: | 4 meters |
| 12 | Raw material of the cutter : | Cr12 |
| 13 | Raw material of the roller: | Bearing steel |
