| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 49 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting | Raw Material Thickness:: | 0.3-0.8mm |
|---|---|---|---|
| Key Selling Points:: | Easy To Operate | Production Capacity:: | 20-25m/min |
| Dimension(L*W*H):: | 6.7*1.45*1.51m | Feeding Material:: | Color Steel Coils |
| Effictive Width:: | 840 And 900mm | Voltage:: | 380v 50Hz |
| Warranty:: | 2 Years | Raw Material Width:: | 1000mm |
| Highlight: | Construction Metal Roofing Panel Machine,Ceramic Tile Metal Roofing Panel Machine,Construction ceramic tile making machine |
||

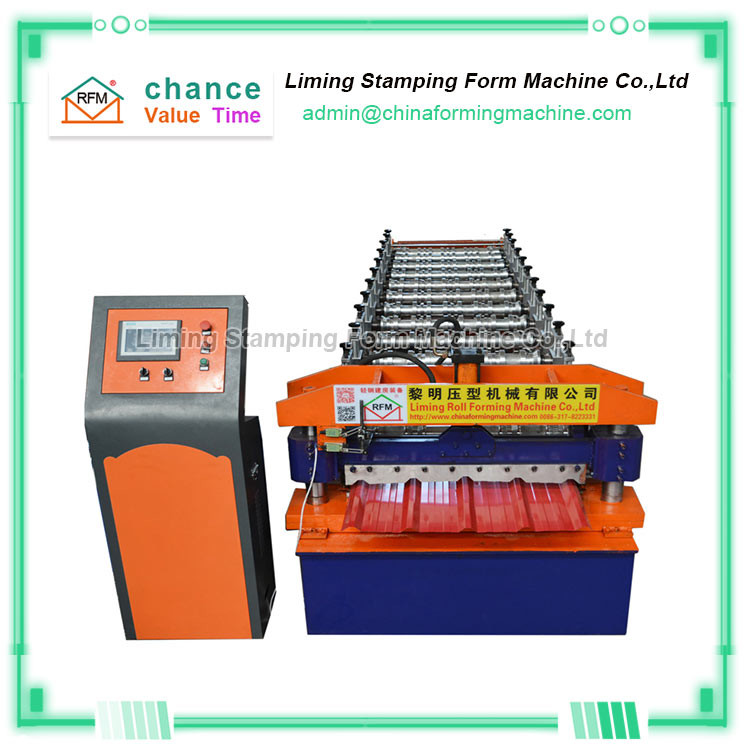

Construction Building Material Metal Roofing Panel Machine For Sale
Colored ceramic tile materials produced by "Construction Building Material Metal Roofing Panel Machine for sale ":
The colored steel plate produced by the "Construction Building Material Metal Roofing Panel Machine for sale " is a thin steel plate that has been sprayed on both sides and processed into various corrugations, thereby giving the thin plate good mechanical properties. It is laid directly on the roof as roof tiles.
"Construction Building Material Metal Roofing Panel Machine for sale " has good mechanical performance, large span, convenient installation and construction, beautiful and durable appearance, light weight, high strength, good insulation effect, and environmental protection.
In addition, the colored steel plates produced by the "Construction Building Material Metal Roofing Panel Machine for sale " can also have different plate thicknesses and different surface coating treatments. This has important influence and significance on the mechanical properties and corrosion resistance and durability of color steel plates.
The colorful tiles produced by the "Construction Building Material Metal Roofing Panel Machine for sale " are used to construct steel structure factories, airports, warehouses, freezers, etc.
Main parameters of Construction Building Material Metal Roofing Panel Machine For Sale
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m(depend on design) |
| 3.Main motor power | 3KW ~4KW with Cycloidal reducer |
| 4.Hydraulic station power | 3KW ~4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6.Thickness of material | 0.2mm~0.8mm |
| 7.Diameter of principal axis | Φ70-90mm |
| 8.Material expand width | 1000,1200,1250mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 3-6m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 8-20 Rollers |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 4.6T |
