| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 51 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting | Raw Material Thickness:: | 0.3-0.8mm |
|---|---|---|---|
| After-sales Service Provided:: | Engineers Available To Service Machinery Overseas | Production Capacity:: | 20-25m/min |
| Dimension(L*W*H):: | 7300*1550*1200mm | Weight:: | 6.5T |
| Rows Of Rollers:: | 15rows & 16 Rows | Core Components:: | Bearing, Pump, PLC |
| Warranty:: | 2 Years | Raw Material Width:: | 1250mm |
| Highlight: | Glazed Tile Roof Panel Roll Forming Machine,Hydraulic Cutting Roof Panel Roll Forming Machine,Hydraulic Cutting glazed tile roll forming machine |
||

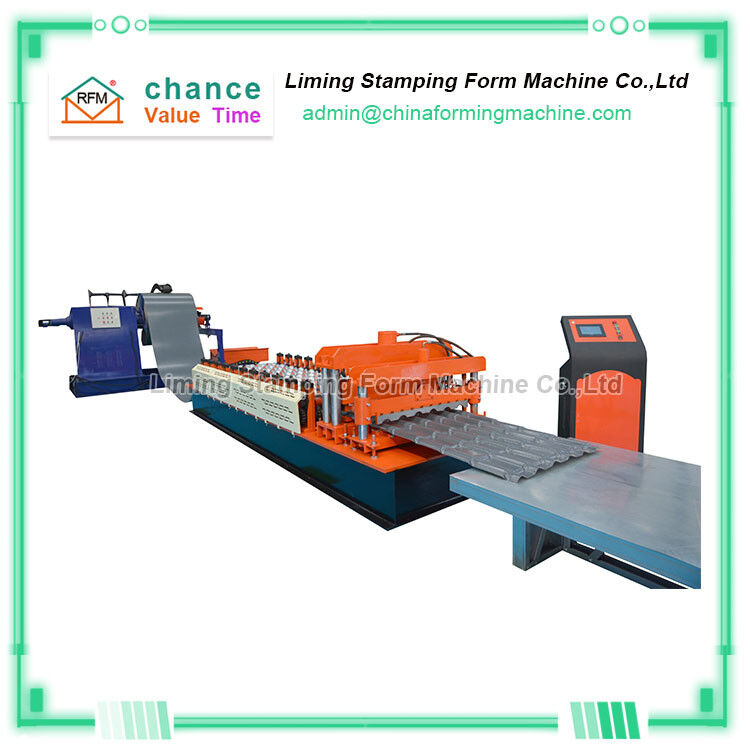

Glaze Tile Roof Panel Roll Forming Machine Production Line
"glaze tile roof panel roll forming machine production line " is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structure houses.
"glaze tile roof panel roll forming machine production line " also has the characteristics of light weight, high strength, rich colors, convenient construction, earthquake resistance, fire prevention, rain resistance, long life, and maintenance-free.
The color of the colored steel plate produced by the "glaze tile roof panel roll forming machine production line " can be divided into many types according to user requirements, such as orange, cream yellow, dark sky blue, sea blue, deep red, brick red, ivory, porcelain Blue and so on, and the colors are also very bright, the surface without decoration is very beautiful.
Main parameters of Glaze Tile Roof Panel Roll Forming Machine Production Line
| Product Name | glaze tile roof panel roll forming machine production line | |
| Material | Type | Pre-painted & galvanized steel coil |
| Thickness(mm) | 0.3-0.7mm | |
| Tield stress(Mpa) | Q235-345 | |
| Max.forming speed (m/min) | 10-15m/min | |
| Roller material | #45 steel with hard chrome treatment | |
| Roller driven type | Chain transmission | |
| Controller | PLC | |
| Operation | Touch screen and button | |
| Hydraulic system pressure(Mpa) | 12 | |
| Main motor power(KW) | 4 | |
| Hydraulic station motor power | 3 | |
| Dimension (L*W*H) | about 8500*1500*1500mm | |
| Weight (KG) | about 6000 | |
