| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 52 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine | Raw Material Thickness:: | 0.3-1mm |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Production Capacity:: | 20-25m/min |
| Dimension(L*W*H):: | 7300*1550*1200mm | Weight:: | 6.5T |
| Rows Of Rollers:: | 15rows & 16 Rows | Core Components:: | Bearing, Pump, PLC |
| Warranty:: | 2 Years | Raw Material Width:: | 1250mm |
| Highlight: | Building Material Metal Tile Making Machine,6.5T Metal Tile Making Machine,plc tile roof machine |
||

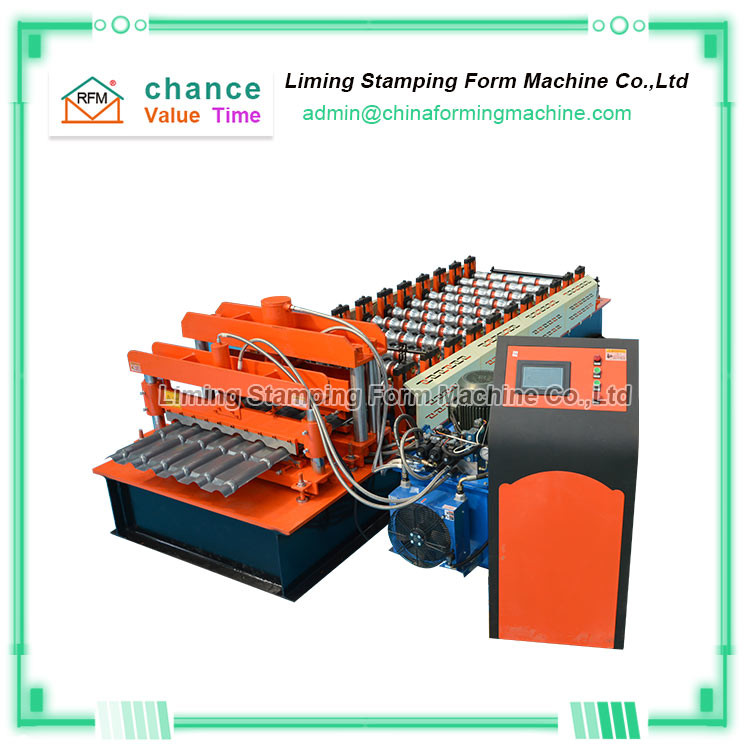

Glazed Tile Roll Forming Machine Metal Roofing Tiles Making Machine For Building Material Machinery
Common models of "glazed tile roll forming machine metal roofing tiles making machine for building material machinery ": LM-800, LM-820, LM-765
The customizable thickness of "glazed tile roll forming machine metal roofing tiles making machine for building material machinery " is usually: 0.7mm, 0.8mm, 0.9mm, 1.0mm,
The length of "glazed tile roll forming machine metal roofing tiles making machine for building material machinery ": can be customized according to the actual size of the roof
The advantages of glazed tiles produced by"glazed tile roll forming machine metal roofing tiles making machine for building material machinery ": beautiful, flexible laying, durable for 50 years
"Glazed tile roll forming machine metal roofing tiles making machine for building material machinery " has a wide range of applications: it can be used in villas, residential areas, prefabricated houses, ancient buildings, garden attics and substations.
Weathering life of buildings constructed by "glazed tile roll forming machine metal roofing tiles making machine for building material machinery ": more than 15 years
Main parameters of Glazed Tile Roll Forming Machine Metal Roofing Tiles Making Machine For Building Material Machinery
| No. | glazed tile roll forming machine metal roofing tiles making machine for building material machinery | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 914mm |
| 3 | Roller station | 18 rows |
| 4 | Thickness of feeding material | 0.16-0.3mm |
| 5 | Power | 4+3kw |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 4.5 T |
| 10 | Size | 8500*1300*1400mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Carbon Steel 45# |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 14mm steel plate |
| 15 | Main forming machine body | 300 mm H steel |
| 16 | Control system | PLC control |
