| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 54 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Key Selling Points:: | Easy To Operate | Raw Material Thickness:: | 0.3-1mm |
|---|---|---|---|
| Marketing Type:: | New Product 2020 | Production Capacity:: | 20-25m/min |
| Dimension(L*W*H):: | 7300*1550*1200mm | Voltage:: | 380V.50HZ.3Phase |
| Rows Of Rollers:: | 15rows & 16 Rows | Control System:: | PLC(detla) System |
| Warranty:: | 2 Years | Weight:: | About 4 Tons |
| Highlight: | T0.8mm Roofing Sheet Roll Forming Machine,25m/min Roofing Sheet Roll Forming Machine,25m/min aluminum roll forming machine |
||

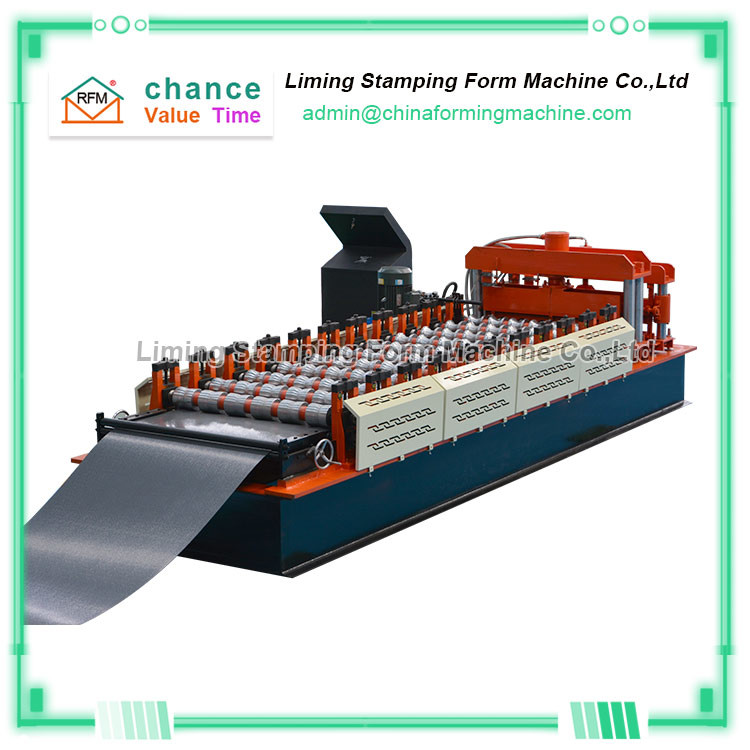

Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine
The production process of "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" is not complicated. The "metal plate aluminum glazed tile roof forming roll forming machine" can be produced by automatic production line machines, and some mechanical equipment and manual stages can also be used. Combine production.
"Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" has a high degree of automation and requires less labor. It combines some mechanical equipment and manual production methods.
Four advantages of using "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine":
Construction period: The glazed tiles produced by the "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" are easy to construct, which can greatly shorten the construction period.
Waterproof: The glazed tiles produced by the "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" are tightly connected and have good waterproof performance;
Fixed load: The glazed tile material produced by the "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" is light in weight and the house is not overloaded;
Construction cost: "Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine" has simple construction and short construction period, which can greatly reduce construction costs.
Main parameters of Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine
| Name | Metal Sheet Aluminum Glazed Tile Roof Making Roll Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | 914, 1000, 1220 or 1250 mm. |
| According to your actual drawing. | |
| Electric Power | 380V, 50 Hz, 3 phase |
| or according to your need. | |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. |
| It is controlled by PLC | |
| length accuracy: ±1mm. |
