| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 60 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Key Selling Points:: | Long Service Life | Cutting Blade Material:: | Cr 12 High Grade Steel |
|---|---|---|---|
| Material Of Rollers:: | Hrad Chrome Coating | Production Capacity:: | 8-12m/min |
| Dimension(L*W*H):: | 6500*1500*1500 | Voltage:: | 380V.50HZ.3Phase |
| Rows Of Rollers:: | 15rows & 16 Rows | Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm, Other |
| Warranty:: | 2 Years | Shaft Material:: | 45# Steel Outer Diameter: 75mm |
| Highlight: | Alum Roofing Sheet Roll Forming Machine,Roofing Roll Forming Machine,50HZ Roofing Sheet Roll Forming Machine |
||

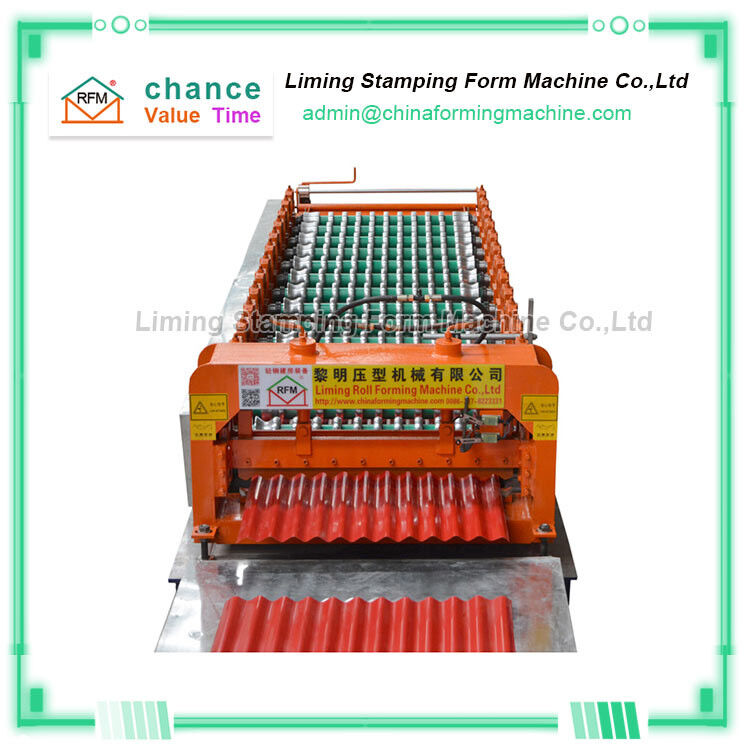

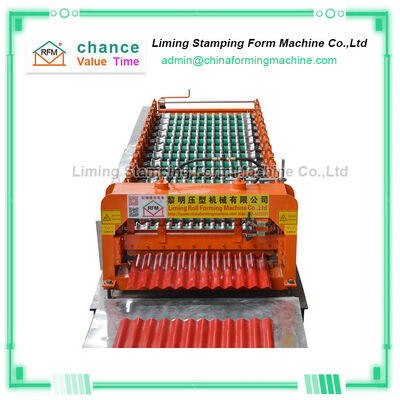

Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Making Machine
1. The metal bricks produced by the "metal roofing galvanized aluminum corrugated steel sheet making machine" require certain technical preparations before installation
1. First, carefully review the metal tile construction detailed drawing design manufactured by the "metal roofing galvanized aluminum corrugated steel sheet making machine" , and master the layout drawing, node structure and construction organization design requirements
2. The metal tile construction workers who organize the "metal roofing galvanized aluminum corrugated steel sheet making machine" learn the above content, and the technician will explain the construction requirements and regulations to the workers
3. Compile the metal tile construction operating procedures for the "metal roofing galvanized aluminum corrugated steel sheet making machine" , and publish the start and end dates and safety operating procedures.
4. Detailed drawings of the metal tile structure manufactured by the"metal roofing galvanized aluminum corrugated steel sheet making machine" will be released
5. Before installing the metal bricks, please check whether the structural installation of the "metal roofing galvanized aluminum corrugated steel sheet making machine" meets the installation conditions of the shell structure.
Main parameters of Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Making Machine
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000/1250 mm coil sheet |
| 2 | Thickness of feeding material | 0.3mm-0.8mm coil sheet |
| 3 | Roller station | 8-15 stations |
| 4 | Shaft Diameter | 75mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 6-8 ton |
| 9 | length | 5.5 -11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 Tons |
| 13 | Motor | 3-7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
