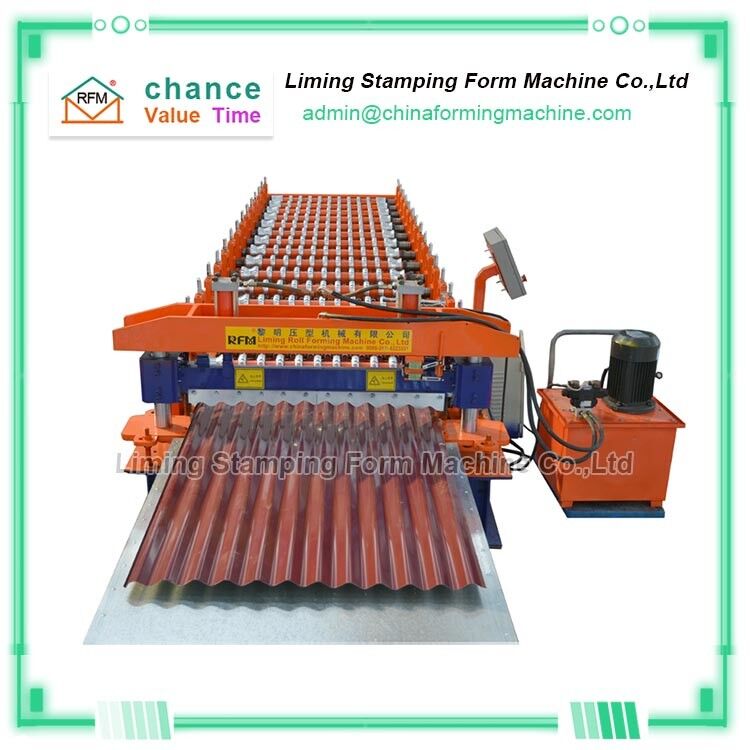

Corrugated Cr 12 Roofing Sheet Roll Forming Machine 4kw

Basic Information
Place of Origin: Hebei China
Brand Name: LIMING
Certification: CE、ISO、BV
Model Number: LM-roofing sheet 62
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude、Anti-dust film, Anti-rust cloth
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60set/Year
Detail Information
Core Components:: Motor, PLC Cutting Blade Material:: Cr 12 High Grade Steel
Main Motor Power:: 4kw Production Capacity:: 8-12m/min
Dimension(L*W*H):: 7000*1300*1200mm Voltage:: 380v/as Your Requirement
Rows Of Rollers:: 15rows & 16 Rows Feeding Width:: 1200mm, 1000mm
Warranty:: 2 Years Weight:: About 3.5T
Highlight:

Corrugated Steel Roofing Sheet Roll Forming Machine

,

4kw Roofing Sheet Roll Forming Machine

,

4kw corrugated roof sheet making machine


Product Description

Corrugated Color Steel Roofing Sheet Cold Roll Forming Making Machine



Before installation, prepare the installation environment of the metal tiles produced by the "Corrugated Color Steel Roofing sheet Cold Roll Forming Making Machine"



1) Pedestal: Colored stone and metal tiles can be used for the roof of any material.

2) The wooden keel needs to use dry wood (metal material) with a size of 30mm×25mm, and the surface must be treated with anticorrosion.

3) Tool preparation: hammer, tape measure, ink fountain, electric drill, cutting saw, mobile pipe bender.

4) Auxiliary materials: sealant, rivets, nails.



At the construction site of the corrugated color steel plate produced by the "Corrugated Color Steel Roofing sheet Cold Roll Forming Making Machine", it is necessary to wear protective equipment. Only by protecting your own safety can the construction be completed successfully.



In addition, the use of protective equipment in various built environments is also a national policy, and we must never violate the law. From our own point of view, only when we can protect ourselves during the construction process can we complete the work smoothly and work healthily.



At the construction site of the corrugated color steel plate produced by the"Corrugated Color Steel Roofing sheet Cold Roll Forming Making Machine", it is generally necessary to wear a safety helmet and try to avoid obstacles such as wires.



Main parameters of Corrugated Color Steel Roofing Sheet Cold Roll Forming Making Machine



Width of feeding material 1000 mm coil sheet
Thickness of feeding material 0.3-0.8 mm coil sheet
Roller station 13 stations
Shaft Diameter 75 mm
Productivity 8-15m/min
Rollers' material 45# steel with 0.05mm chrome
Shaft material 45# steel with 0.05mm chrome
Weight 2.5 ton
length 6.5 m
Voltage 380V 50Hz 3phases
Control PLC
Decoiler 3 Tons
Motor 5.5 kw
Driving way Chain transmission
Chain size 1 inch
Cutting system Hydraulic cutter
