| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 63 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine | Cutting Blade Material:: | Cr 12 High Grade Steel |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Production Capacity:: | 12-25m/min |
| Dimension(L*W*H):: | 7000*1300*1200mm | Voltage:: | 380v/as Your Requirement |
| Rows Of Rollers:: | 15rows & 16 Rows | Feeding Width:: | 1200mm, 1000mm |
| Warranty:: | 2 Years | Weight:: | About 3.5T |

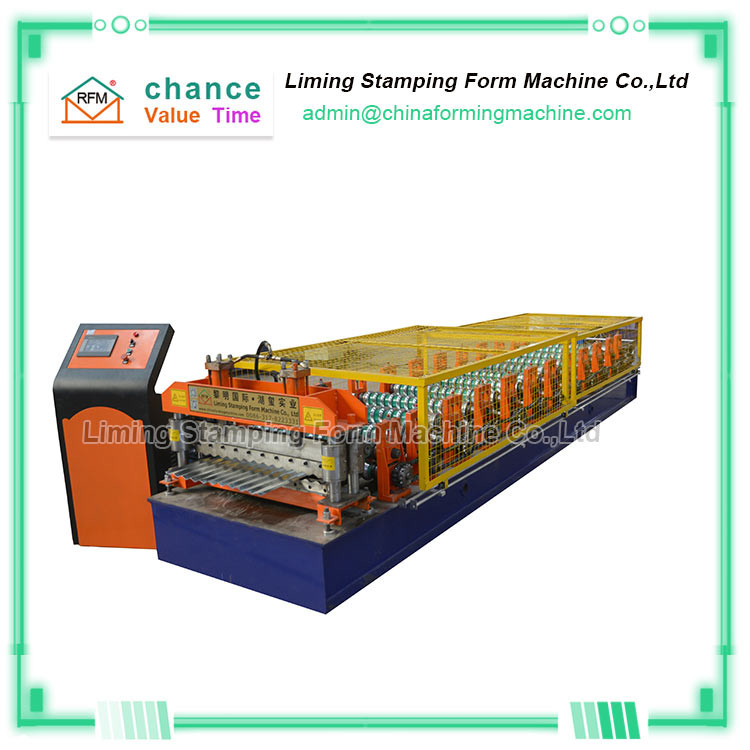

2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price
"2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price " The whole machine adopts PLC control, electric operation, automatic cutting, automatic counting, and simple operation. It is a forming equipment used to produce curved plates.
"2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price " is used to process light steel structure roof panels, mainly including unloader, feeding platform, forming host, punching device, forming cutting device, hydraulic station, computer control cabinet. Partial composition.
"2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price " , also known as the corrugated tile forming machine, is a roof slab forming machine that produces curved panels.
"2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price " The main machine and all accessories are made of raw materials and processed by the original factory skilled workers. The rolled plate has high degree of precision and high precision, allowing users to obtain ordinary products. Boutiques.
Main parameters of 2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price
| No. | 2021 New Roof Use Corrugated Profile Steel Sheet Roll Forming Machine Price | |
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 1000mm |
| 3 | Thickness of material | 0.3-0.8mm or as your needs |
| 4 | Working speed | 10-20m/min |
| 5 | Electrical control system | PLC control system |
| 6 | Shaft diameter | 80mm |
| 7 | Dimension | 7500x1500x1910mm |
| 8 | Weight | About 7 T |
| 9 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11 | Material of cutting | Cr12 mould steel with quenched treatment |
| 12 | Working time | Can be 24 hours |
| 13 | Workers | 1-2 only |
