| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 66 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works | Cutting Blade Material:: | Cr 12 High Grade Steel |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Production Capacity:: | 15-25m/min |
| Dimension(L*W*H):: | 6500*1300*1100 | Voltage:: | 380v/as Your Requirement |
| Raw Material:: | PPGI PPGL GI GL | Feeding Width:: | 1200mm, 1000mm |
| Warranty:: | 2 Years | ||
| Highlight: | Novel Designed Roof Panel Roll Forming Machine,5000kg Roof Panel Roll Forming Machine |
||

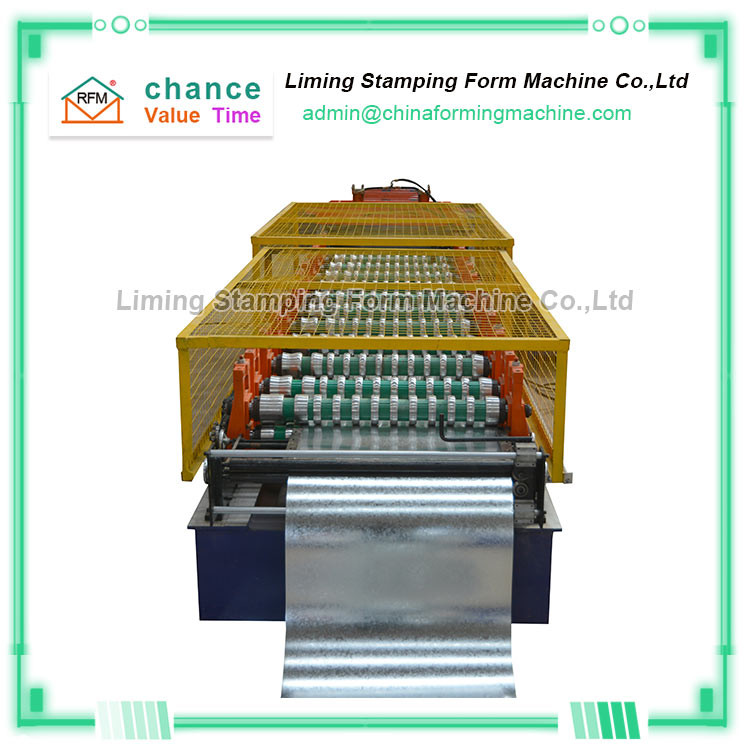

Novel Designed Panel Steel Corrugated Metal Roof Tile Sheet Making Roll Forming Machine
Three main performances of "Novel designed panel steel corrugated metal roof tile sheet making roll forming machine":
1 "Novel designed panel steel corrugated metal roof tile sheet making roll forming machine" wind resistance The color steel structure is light in weight, high in strength, good in overall rigidity, and strong in deformation. The weight of the building is only one-fifth of the brick-concrete structure, can withstand 70 meters per second hurricane, can effectively protect lives and property.
2. "Novel designed panel steel corrugated metal roof tile sheet making roll forming machine"" has a good heat insulation effect. The use of external wall insulation board can effectively avoid the "cold bridge" phenomenon of the wall and achieve better insulation effect.
3. "Novel designed panel steel corrugated metal roof tile sheet making roll forming machine" healthy operation and construction, reducing waste pollution to the environment, color steel materials can be recycled, and most of the other supporting materials can also be recycled, in line with current understanding; all materials are Green building materials not only meet the requirements of the ecological environment, but are also beneficial to health. Color steel materials can be recycled, truly green.
Composition and use of "Novel designed panel steel corrugated metal roof tile sheet making roll forming machine": The forming of the brick press includes feeding, forming and post forming cutting. The products produced are smooth and beautiful, with uniform paint patterns and high strength.
Main parameters of Novel Designed Panel Steel Corrugated Metal Roof Tile Sheet Making Roll Forming Machine
| No. | Item | parameter |
| 1 | Machine size | 8600*1600*1500mm |
| 2 | Machine weight | 5000kg |
| 3 | Machine power | 5.5kw |
| 4 | Hydraulic engine | 2.2kw |
| 5 | Roll speed | 14M/Min |
| 6 | Roll stations | 17 |
| 7 | Roller material | 45#Steel |
| 8 | Effective width | 608/912mm |
| 9 | Feeding width | 915/1220mm |
| 10 | Voltage | 220V 60Hz 3PH/Customized |
| 11 | Material thickness | 0.35-0.65mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
