| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 72 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Tile Type:: | PPGI | Cutting Blade Material:: | Cr 12 High Grade Steel |
|---|---|---|---|
| Production Capacity:: | 8-12m/min | Dimension(L*W*H):: | 8700*2050*1610mm |
| Voltage:: | 380V 50Hz 3phases | Hydraulic Motor Power:: | 5.5KW |
| Feeding Width:: | 1000mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.2-1.0mm | Use: | ROOF |

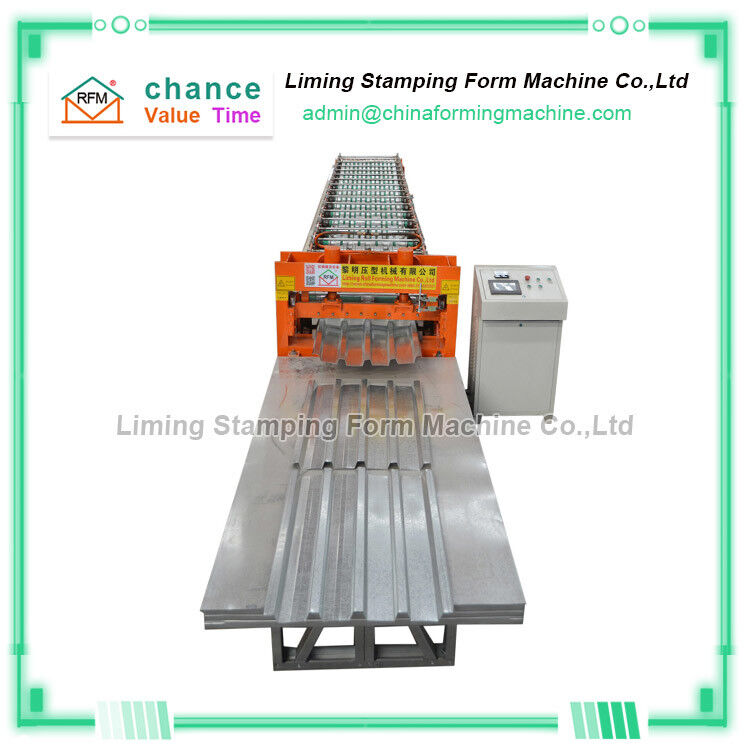

| Highlight: | 8700*2050*1610mm Roof Panel Roll Forming Machine,PPGI Roof Panel Roll Forming Machine |
||

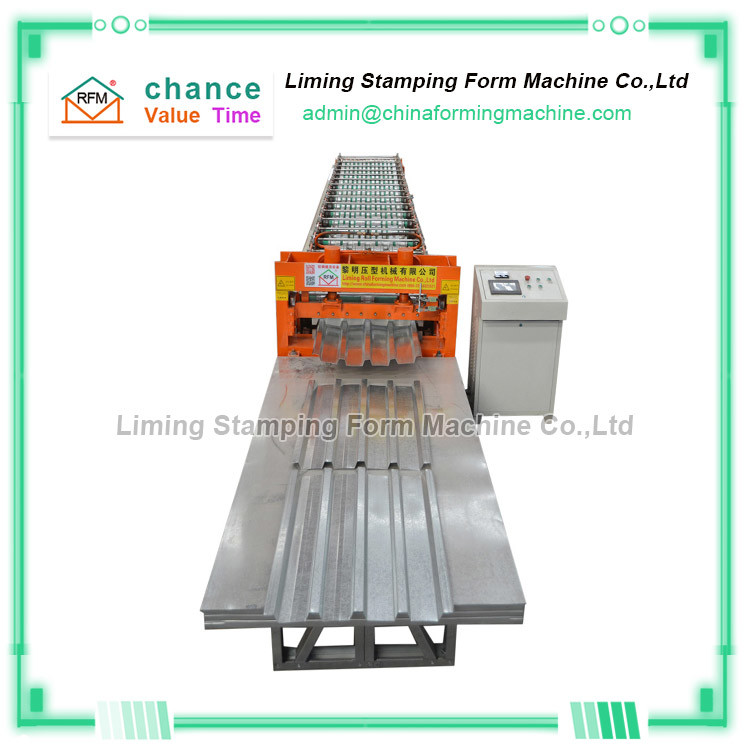

Metal Colored Steel Wall Roof Panel Cold Roll Forming Machine
"Metal colored steel wall roof panel cold roll forming machine" is fully automatic computer control, can be automatically processed into a plate shape, the width of the raw material before feeding is 1000mm, and the use area after forming is 900mm.
"Metal colored steel wall roof panel cold roll forming machine" is computer-controlled, automatic cutting, cutting parts are neat, no burrs, and easy to construct and install.
"Metal colored steel wall roof panel cold roll forming machine" adopts imported high-precision computer controller, large touch screen, combination of seven languages, simple and convenient operation
"Metal colored steel wall roof panel cold roll forming machine" can input multiple sets of different production data at the same time, and start processing and production with one key; save time and energy, rate! Welcome to visit the factory!
"Metal colored steel wall roof panel cold roll forming machine" is widely used in large and medium-sized enterprises and civil buildings, such as workshops, hangars, hangars, stadiums, exhibition halls, theaters, etc.
Main parameters of Metal Colored Steel Wall Roof Panel Cold Roll Forming Machine
| A.Roll forming machine |
| 1) Number of forming steps: 9-20 steps |
| 2) Material of shaft: 45# steel hardening and tempering treatment. Outer diameter 85mm ,total solid Tolled shafts |
| 3) rollers: Material is high grade No.45 forged steel, with digital-controlled procession. The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers. |
| 4) Main motor power: 4 Kw with cyclical planetary gear speed reducer |
| 5) The plating chromium’s thickness on the surface of rollers: 0.05mm |
| 6) Main stand: 350# H steel welded structure Wall plate thickness: 14mm the main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface. |
| 7) Chain and gear move the line, motor drives. All working actions are controlled by PLC electric cabinet automatically. |
| 8) Suitable power voltage:380V/50HZ/3Phase (can de designed according to buyer’s requirement) |
| 9) Line working speed (Forming speed):about 15-18 m/min (without cut time) |
