| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 74 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Building Material Shops, Machinery Repair Shops | Key Selling Points:: | High-accuracy |
|---|---|---|---|
| Production Capacity:: | 8-12m/min | Core Components:: | Pressure Vessel, Bearing |
| Voltage:: | 380V 50Hz 3phases | Hydraulic Motor Power:: | 5.5KW |
| Feeding Width:: | 1220mm, 1200mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.2-1.0mm | Usage:: | Roofing Forming Mchine |
| Highlight: | 300H Steel Corrugated Sheet Making Machine,13 Rows Roof Sheet Rolling Machines,300H Steel Roof Sheet Rolling Machines |
||

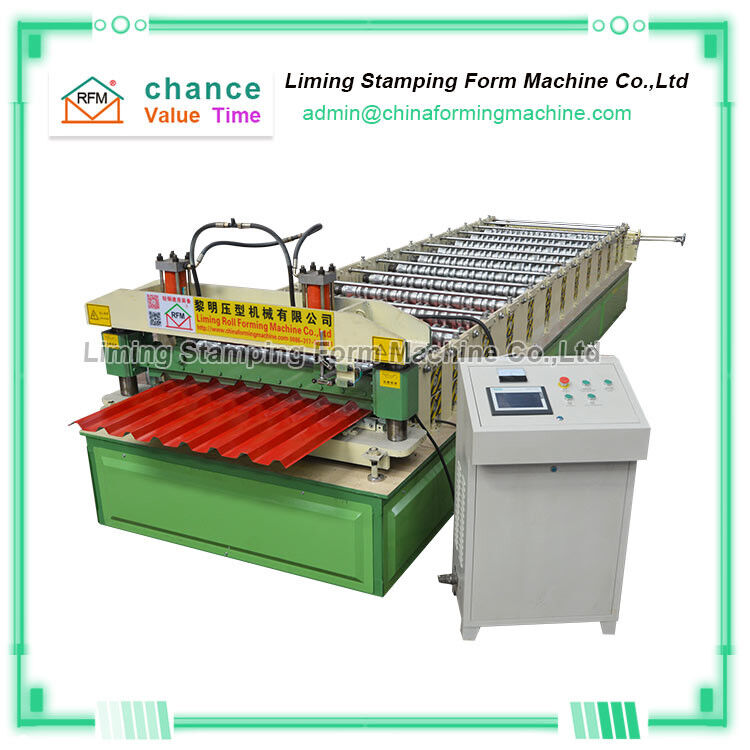

Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine
The motor power of the "Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine" is 5.5 + 5KW.
"Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine" adopts imported high-precision PLC programming controller, and the rolls are processed by Japanese CNC high-precision machine tools to ensure the accuracy of each workpiece.
"Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine" is fully automatic computer control, automatically processing the sheet into shape, the raw material width is 1000mm before feeding, the use area after forming is 750mm, computer control, automatic cutting, the cutting surface is neat and free of burrs , Easy to install and construct.
"Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine" adopts high-strength chain + sprocket drive to increase the production speed.
The controller of the "Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine" can input multiple sets of different production data at the same time, and start production with a button, which is simple and fast.
Main parameters of Top Quality Corrugated Tile Roof Sheet Making Roll Forming Machine
| Large frame | 300H steel |
| Rolling wheel | Forging 45# steel |
| Roller station | about 13rows |
| Rolling speed | 10-12m/min |
| Rolling thickness | 0.2-0.8mm |
| Kind of drive | Driving with 1.3 inches chain |
| thickness of side-wall | 14mm |
| Type of cutting | hydraulic cutting |
| Type of forming machine | single layer |
| blade material | Cr12 |
