| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 75 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| After-sales Service Provided:: | Engineers Available To Service Machinery Overseas | Machinery Test Report:: | Provided |
|---|---|---|---|
| Production Capacity:: | 20-25m/min | Core Components:: | Pressure Vessel, Bearing |
| Voltage:: | 380V 50Hz 3phases | Hydraulic Motor Power:: | 5.5KW |
| Feeding Width:: | 1220mm, 1200mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.2-1.0mm | Usage:: | Roofing Forming Mchine |
| Highlight: | Aluzinc Roof Panel Roll Forming Machine,25m/min Roof Panel Roll Forming Machine,25m/min roof panel machine |
||

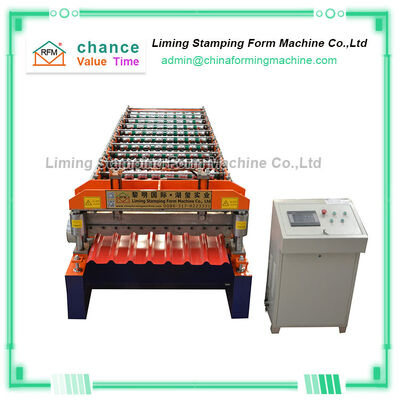

Aluzinc Roof Panel Making Roll Forming Machine
"Aluzinc roof panel making roll forming machine " is easy to operate and has complete functions. It adopts low-speed metering pump, frequency conversion speed regulation, computer control, and accurate measurement.
"Aluzinc roof panel making roll forming machine " adopts imported high-precision PLC programming controller.
The rollers of the "Aluzinc roof panel making roll forming machine "are processed by Japanese CNC high-precision machine tools to ensure the accuracy of each workpiece.
"Aluzinc roof panel making roll forming machine " adopts high-strength chain + sprocket drive, which improves the production speed.
Roller of "Aluzinc roof panel making roll forming machine ": The material of "Aluzinc roof panel making roll forming machine " is made of No. 45 steel and plated with hard chromium. The press roll molds are all vacuum high temperature quenching. The hardness is 58-62 degrees to ensure the wear resistance of the mold.
Main parameters of Aluzinc Roof Panel Making Roll Forming Machine
| Product Name | zinc metal steel roofing plate sheet making forming machine |
| Frame Structure | Steel Plate Welded Manual |
| Roller Flatting System | let the feeding fluently |
| Installation Dimension | 11500mm*1500mm*1500mm |
| Machine Under Frame | 400H-beam |
| Sidewall Plate Thickness | 16mm |
| Roller Stations | 23Steps |
| Shaft Diameter | 70mm |
| Main Shaft Material | 45# steel with finish turning ; |
| Roller Material | 45# Forging Steel with Chromium Plate; |
| Chromium Plate Thickness | 0.05mm |
| Motor Power | 5.5kw |
| Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
| Chain Wheel and Cycle Chain | 1 Inch |
| Roll forming Speed | 15-20m/min (adjusted with frequency changer). |
| Frequency Converter | Delta |
| Voltage | 3phase/380V/50Hz (For confirmation ) |
| Hydraulic Tank | 1 set |
| Hydraulic Pump Station | 3Kw |
| Cutting Length Tolerance | 10m ±1mm; |
| Cutting Tool Material | Cr12 with quenched treatment 58°C-62°C. |
