| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 82 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Control System:: | Fully Automatic | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 20-25m/min | Suitable Material:: | Q235 Or Similar |
| Voltage:: | 440v 50Hz 3Ph | Marketing Type:: | New Product 2020 |
| Feeding Width:: | 1220mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.3-0.8mm | Weight:: | 3.5T |
| Highlight: | 7kw Roof Panel Roll Forming Machine,T0.3mm Zinc Sheet Making Machine,7kw Zinc Sheet Making Machine |
||

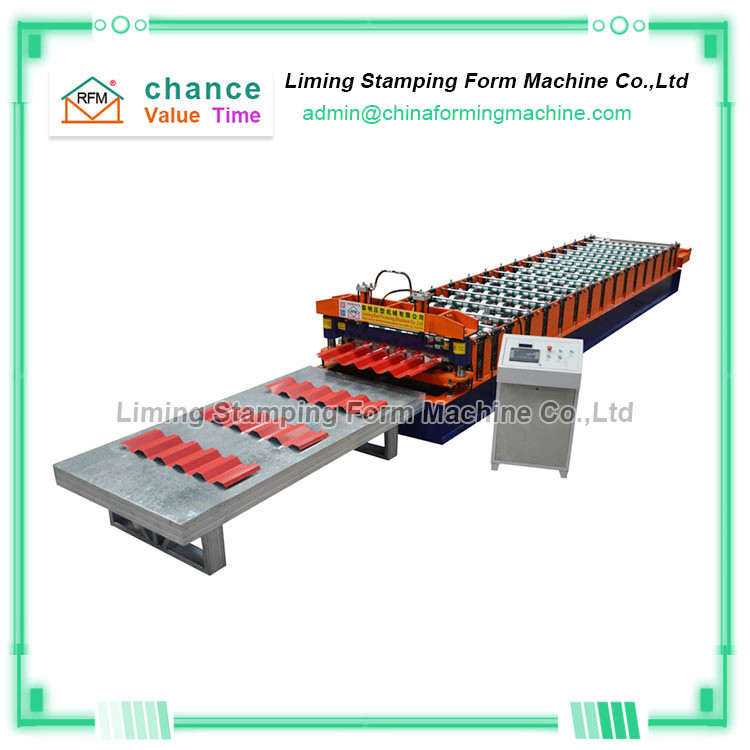

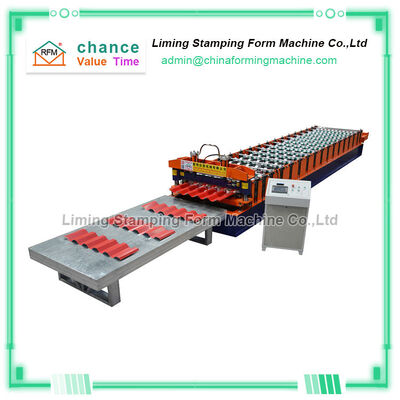

Good Prices Zinc Roofing Sheet Making Roll Forming Machine
"Good prices zinc roofing sheet making roll forming machine" adopts PLC computer control program, preset data parameters, automatic fixed length, automatic cut, and touch screen operation, the size is accurate, simple and convenient.
"Good prices zinc roofing sheet making roll forming machine" adopts the protective cover of the transmission system to avoid personal injury. In an emergency, the emergency stop switch can stop the machine.
The section "Good prices zinc roofing sheet making roll forming machine" is economical and reasonable, saving materials. In the case of the same weight and cross-sectional area, the section coefficient of the cold-formed section is higher than that of the hot-rolled section. Under the same load, the weight of components can be reduced and materials can be saved.
"Good prices zinc roofing sheet making roll forming machine" can be used in production that meets different needs through punching, embossing, engraving and other processes, and the forming speed can reach 250m per minute.
There are many varieties of "Good prices zinc roofing sheet making roll forming machine", which can produce thin-walled metal profiles with uniform wall thickness and complex cross-sections.
Main parameters of Good Prices Zinc Roofing Sheet Making Roll Forming Machine
| No | Item | Parameter | Note | |
| 1 | Suitable | Type | Pre-paint Steel | |
| Aluminum | ||||
| Material | Width | According to profile | ||
| Thickness | 0.30—0.70mm | |||
| 2 | Product | Cover width | According to profile | Refer to drawing |
| Wave height | According to profile | |||
| Specs | Length | Any length | ||
| 3 | Machine | Active shaft | No. 45 steel tempered | Up to final design |
| Roller | No. 45 steel chrome plated | |||
| Material | Cutting Blade | Cr12 quenched | ||
| 4 | Power | Type | 380V/3PH/50HZ | Customized |
| Requirement | Main motor | 7kw | Up to final design | |
| Hydraulic | 5.5kw | |||
| 5 | Speed | Forming speed | 30-35m/min | |
| 7 | Forming Stand | About 18 group | Up to profile | |
| 8 | Transmission style | Chain, sprocket | ||
| 9 | Main machine structure | Wall Panel | ||
| 10 | Type of Cutting | length-set cutting | Hydraulic cutter | |
| 11 | Control System | Mitsubishi PLC& transducer | ||
| 12 | Product support | Run out table | ||
