| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 83 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Tile Type:: | Color Plate, Aluminium Plate, Galvanized Plate | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 20-25m/min | Suitable Material:: | Q235 Or Similar |
| Voltage:: | 440v 50Hz 3Ph | Key Selling Points:: | Easy To Operate |
| Feeding Width:: | 1220mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.4-0.7 | Applicable Industries:: | Manufacturing Plant |
| Highlight: | Aluminum Roof Panel Roll Forming Machine,16 Stations Roof Panel Roll Forming Machine,16 Stations aluminum roll forming machine |
||

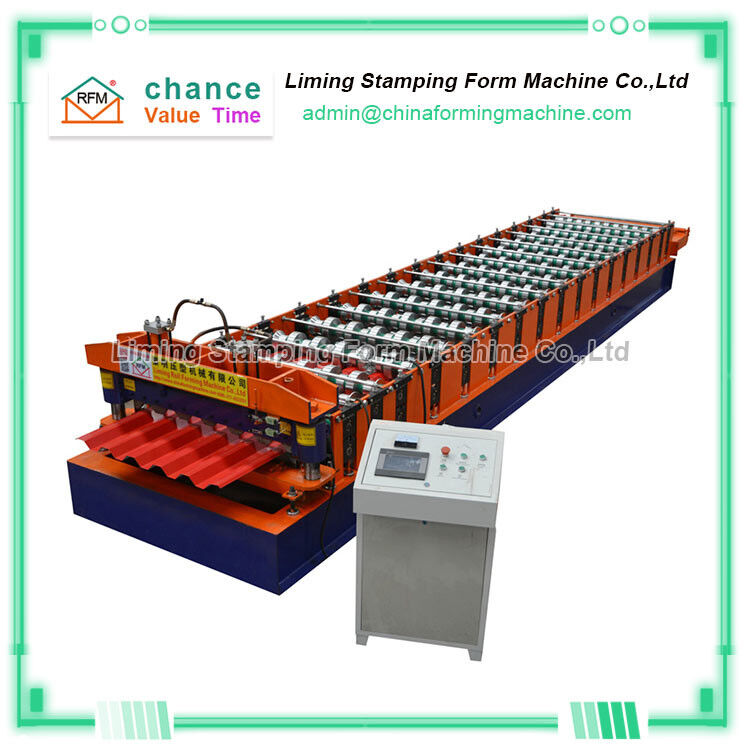

Metal Galvanized Aluminum Colored Steel Wall Roof Panel Roll Forming Machine
Careful physical examination is the guarantee for the normal operation of the "Metal galvanized aluminum colored steel wall roof panel roll forming machine ".
"Metal galvanized aluminum colored steel wall roof panel roll forming machine" adopts advanced automatic control software to realize production information management. The entire unit automation control system uses a highly integrated network to make the automation system even better.
"Metal galvanized aluminum colored steel wall roof panel roll forming machine" has the advantages of convenient operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.
"Metal galvanized aluminum colored steel wall roof panel roll forming machine " is widely used in the production of roofs and walls of various industrial plants, houses, warehouses, and is beautiful and durable.
"Metal galvanized aluminum colored steel wall roof panel roll forming machine " is mainly composed of a feeding platform, a forming host, a forming shear device, a hydraulic station and a computer control system.
Main parameters of Metal Galvanized Aluminum Colored Steel Wall Roof Panel Roll Forming Machine
| 01 | Material feeding width | 925~1220mm |
| 02 | Material thickness | 0.3~1.0mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 16stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 70mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 5.5kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 6.2t |
| 21 | Overall dimensions | 8600x1500x1300mm |
