| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 84 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Tile Type:: | Color Plate, Aluminium Plate, Galvanized Plate | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 10-15m/min | Suitable Material:: | Q235 Or Similar |
| Voltage:: | 440v 50Hz 3Ph | Key Selling Points:: | Easy To Operate |
| Feeding Width:: | 1220mm | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.4-0.8mm | Hydraulic Station Motor Power(KW)::: | 5.5kw |
| Highlight: | 440v Aluminium Roofing Sheet Making Machine,5.5kw Roof Panel Roll Forming Machine,440v Roof Panel Roll Forming Machine |
||

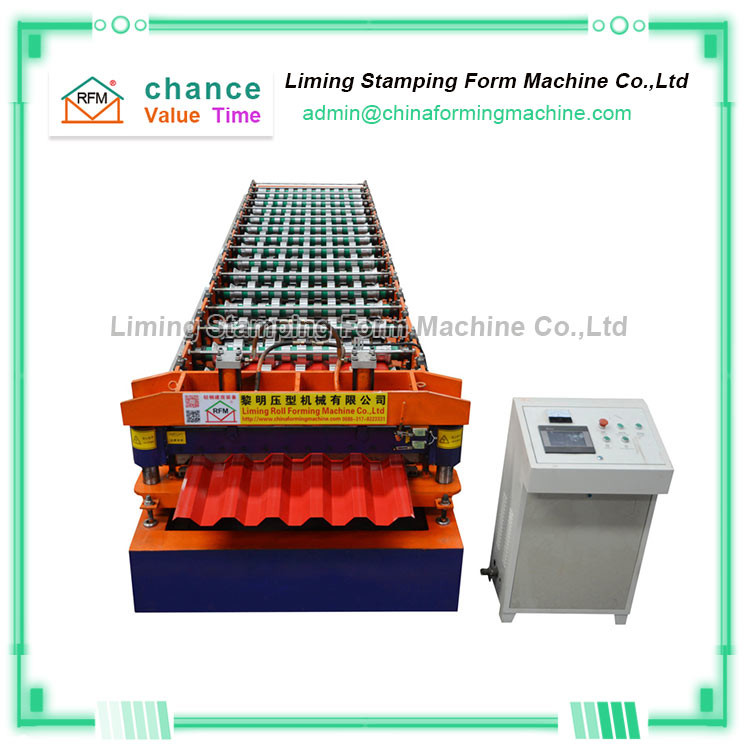

Africa Aluminum Profile Metal Roofing Sheet Making Machine
The products produced by "africa aluminum profile metal roofing sheet making machine " are used in the roof production of various industrial plants and warehouses. They have the advantages of high wave crest, high strength, safe and reliable overlapping installation, waterproof and anti-riot.
The special-shaped panels produced by "africa aluminum profile metal roofing sheet making machine "solve the roof leakage problem of the conventional series of special-shaped panels, and can be used together with the arch machine to produce beamless arched roofs.
The forming of "africa aluminum profile metal roofing sheet making machine " includes unfolding, forming and post forming cutting. The products produced have smooth and beautiful appearance, uniform paint patterns, high strength and durability.
The roof panels produced by"africa aluminum profile metal roofing sheet making machine " are widely used in industrial and civil buildings, such as factory buildings, warehouses, hangars, hangars, stadiums, exhibition halls, theaters and other rooms and walls.
The center lines of the upper and lower rollers of the"africa aluminum profile metal roofing sheet making machine " should be on the same plane as the center wheel, and the flatness should not be greater than 1mm. The gap between the upper and lower rollers in each row is equal, and the gap deviation is + 0.1mm. Use conventional measuring tools or feeler gauges for debugging.
Main parameters of Africa Aluminum Profile Metal Roofing Sheet Making Machine
| (1) Material of frame : (high grade) 400mm H shape steel welding |
| (2) Thickness of middle plate : 20mm (whole plate) |
| (3) Step of roller : 18 steps |
| (4) Diameter of shaft (solid shaft): 74mm |
| (5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment |
| (6) Material of roller: 45# Steel |
| (7) Treatment of roller : hard chromize coated 0.05-0.07mm |
| (8) Drive type of roll forming machine : drive by chain |
| (9) Chain : 25.4mm (high grade) |
| (10) Bearing : 6210 (high grade) |
| (11) Reducer : 5# cycloid reducer (high grade) |
| (12) Power of main motor : 4KW |
| (13) Voltage : 380V/50Hz/3phase |
| (14) Motor power of hydraulic station : 4kw |
| (15) Line speed : about 10-12 m/min |
| (16) Oil pump of hydraulic station : gear oil pump (high grade) |
| (17) Hydraulic cutting: cutting controlled by PLC |
| (18) Accuracy of cutting : +/- 2mm |
| (19) Razor blades material : Cr12, quenching 58-62 °. |
| (20) Appearance size of main forming machine : 8.0m (length)*1.6m (width) *1.4m (height) |
| (21) Electrically controlled system : entire machine controlled by PLC |
| (22) PLC : DELTA(TAIWAN) |
| (23) Frequency converter : DELTA(TAIWAN) |
| (24) Frequency converter power : 5.5KW |
| (25) Encoder : RUI PU(high grade) |
| (26) Controlling desktop : touch screen(high grade) |
| (27) Electrical parts : DELIXI or CHINT |
