| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 85 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Chain:: | 1 Inch Single Row | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 10-15m/min | Suitable Material:: | Q235 Or Similar |
| Voltage:: | 440v 50Hz 3Ph | Key Selling Points:: | Easy To Operate |
| Roller Rows:: | 13rows | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.3-1mm | Hydraulic Station Motor Power(KW)::: | 5.5kw |

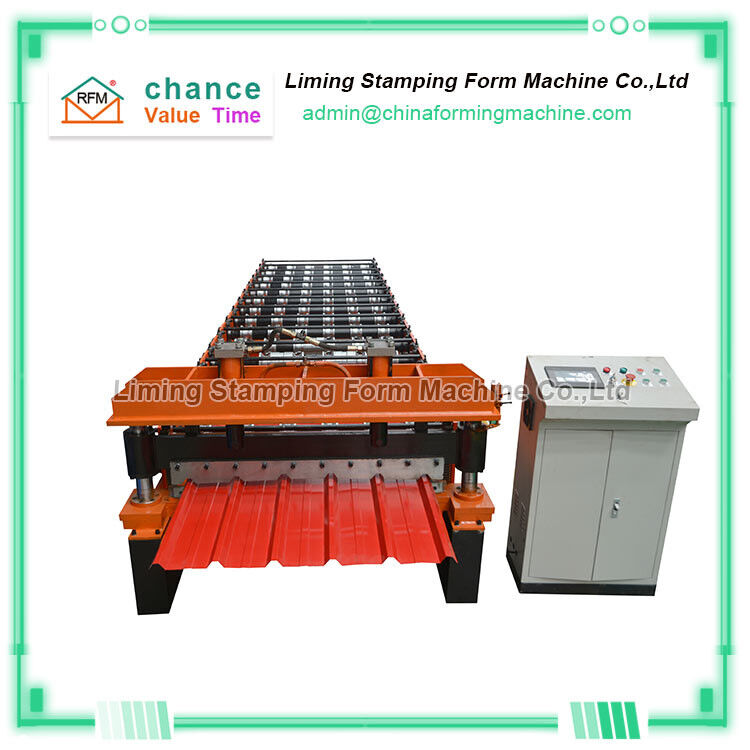

New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine
"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" has high wave crest and high strength, safe and reliable overlap installation, strong waterproof and typhoon resistance, and good advantages with conventional solutions. The roof leakage problem of the series of special-shaped panels can be used with the arching machine to produce a beamless arched roof.
"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" adopts a directional four-row high-speed boutique structure
"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" host "pressure cylinder and main tile model" is bound to four 120 mm solid guide hydraulic supports by "guide sleeves", while "main tile "Mould" is up and down. Vertical operation, no vertical deviation, especially for the brittleness of the main tile mold, play an absolute protective role, and also greatly extend the service life of the "main tile mold".
"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" adopts 95mm high quality thick shaft, which is strong and durable.
The main body of the "New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" is non-welded and all made of "cast steel". The whole machine will not deform the main body due to welding "stress".
Main parameters of New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine
| Main Forming machine | Forming steps | 14 steps |
| Shaft diameter | 80mm | |
| Machine stand | Middle Connecting Plate | |
| Machine frame | 350mm H Steel welded | |
| roller material | 45# | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | standard: 10---15m/min | |
| Transport | By Chain | |
| Power of main machine | 4kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 8.5*1.65*1.5m | |
| Machine weight | About5.5T | |
| Machine color | Yellow and blue(as required) | |
| Usage: In order to keep the product shape and precision, adopts welded sheet structure, | ||
| motor reducer drive, chain transmission,roller was chromed which can keep the | ||
| molding plate surface smooth and not easy to be marked when it is working | ||
| Feature : Ensure stability , precision and lifetime. | ||
