| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 88 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Building Material Shops, Farms, Construction Works | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 10-15m/min | Suitable Material:: | Q235 Or Similar |
| Feeding Rack:: | Manual Tightening, Passive Feeding | Frame:: | 350H Steel Welding |
| Warranty:: | 2 Years | Rolling Thinckness:: | 0.3-1mm |
| Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm | ||
| Highlight: | Corrugated Roofing Sheet Roll Forming Machine,PPGI Roofing Sheet Roll Forming Machine,PPGI corrugated sheet roll forming machine |
||

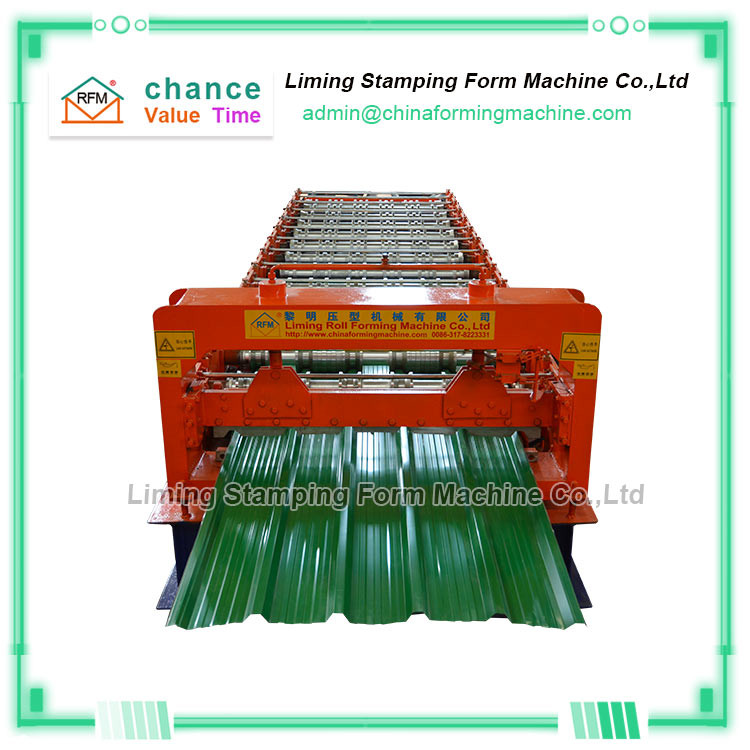

Hot Sale In Nigeria Aluminum Thin Sheet Corrugated Roofing Sheet Making Machine
"hot sale in nigeria aluminum thin sheet corrugated roofing sheet making machine " is usually driven by sprocket and chain. The production principle is to judge the length of the board by sliding the counting wheel on the counter, so that the computer control system can issue a stop command.
During this process, the motor stops suddenly, but the sprocket chain will not stop immediately due to inertia, so a little error will occur. Generally speaking, such errors are inevitable. However, during the "triggered" operation of the "hot sale in nigeria aluminum thin sheet corrugated roofing sheet making machine " ,the inverter will start to slow down the machine by adjusting the number of revolutions of the motor before the counter gives the corresponding value. accurate data. When accurate data is reached, the motor will gradually stop.
In this way,"hot sale in nigeria aluminum thin sheet corrugated roofing sheet making machine " will greatly reduce the inertia of the sprocket, so that the accuracy of the output data is within 1mm or even zero error.
Main parameters of Hot Sale In Nigeria Aluminum Thin Sheet Corrugated Roofing Sheet Making Machine
| 1.Suitable to process: Color steel plate |
| 2.Width of the plate: 1250mm |
| 3.Rollers: Up layer:13 rows Down layer:18rows |
| 4.Dimensions: 11.2*1.55*1.91m |
| 5.Power: 4+4KW |
| 6.Thickness of the plate:0.3-0.7mm |
| 7.Diameter of the roller:Φ70mm |
| 8.Weight: About 6.2T |
| 9.Voltage: 380V 50Hz 3phases |
| 10.Hydraulic: 40# |
| 11.Processing precision: Within 1.00mm |
| 12.Control system: PLC control |
