| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 91 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Tile Type:: | Colored Glaze Steel | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 15-35m/min | Key Selling Points:: | High Safety Level |
| After Warranty Service:: | Video Technical Support, Online Support | Frame:: | 350H Steel Welding |
| Warranty:: | 24 Months | Rolling Thinckness:: | 0.3-1mm |
| Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm | Dimension(L*W*H):: | 6500*1300*1500 |
| Highlight: | 5.5kw plate forming machine,ISO Steel Roof Roll Forming Machine,5.5kw Steel Roof Roll Forming Machine |
||

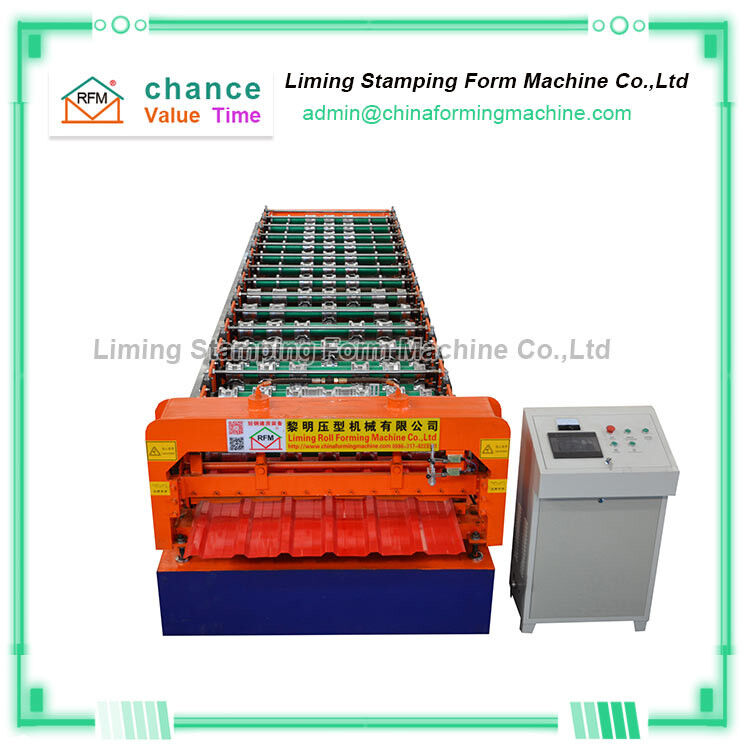

Steel Roofing Plate Foarming Roll Forming Machine
"Steel roofing plate foarming roll forming machine " mainly consists of left and right body, bottom connecting rod, top box cover, sliding seat, hexagonal runner, pulley, gear mechanism, pulley mechanism, cam mechanism, lubrication pump, oil system, electrical control part and others Components.
The "Steel roofing plate foarming roll forming machine " should be wiped frequently to keep it clean, and do not use muddy water.
"Steel roofing plate foarming roll forming machine " has greater power and can be automatically controlled. Therefore, you must pay attention to safety during operation.
After completing the work of the "Steel roofing plate foarming roll forming machine " , be sure to check the wiring and cut off the power supply to avoid damage to electronic components due to short circuits such as motors and electrical boxes. During a thunderstorm, the power should be cut off to avoid unnecessary damage, such as lightning strikes and water ingress.
Main parameters of Steel Roofing Plate Foarming Roll Forming Machine
| No. | Item | Description |
| 1 | Material thickness | 0.4mm-0.6mm |
| 2 | Forming speed | 2-4m/min |
| 3 | Roll station | 14stations/18 stations |
| 4 | Main power | 5.5kw |
| 5 | Hydraulic power | 5.5kw |
| 6 | Control system | PLC Panasonic |
| 7 | Drive | by chain, one inch |
