| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 93 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Retail, Construction Works | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 8-15m/minute | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Size Of Container:: | 20GP/40GP | Type: | Tile Forming Machine |
| Warranty:: | 24 Months | Rolling Thinckness:: | 0.3-1mm |
| Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm | Dimension(L*W*H):: | 8500x1650x1500mm |
| Highlight: | T1mm Roof Tile Forming Machine,PLC Glazed Tile Making Machine,T1mm Glazed Tile Making Machine |
||

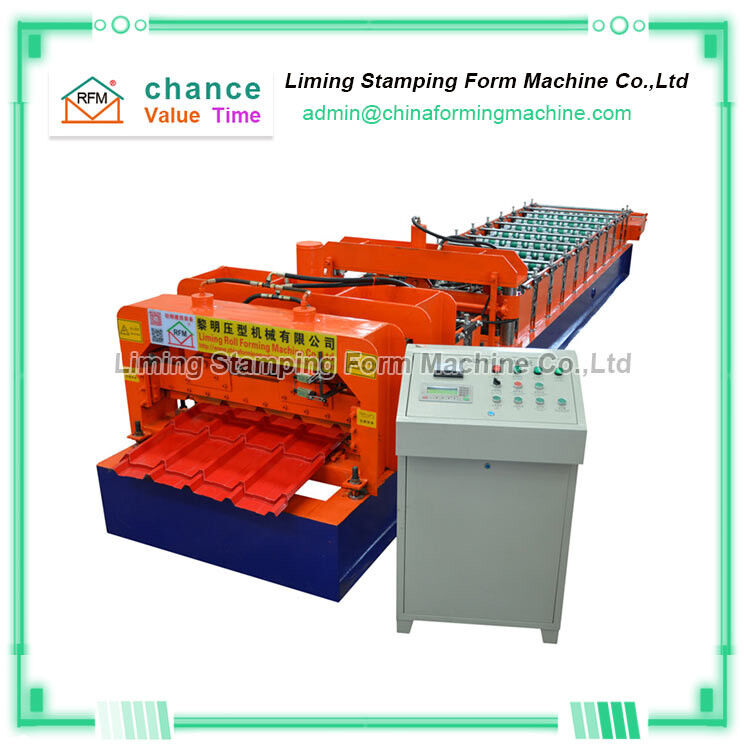

Produce Roof Tile Forming Machine Glazed Tile Making Machine
"Produce roof tile forming machine Glazed tile making machine" is divided into four parts: roll forming part, pressing part, shearing part and electrical control system.
"Produce roof tile forming machine Glazed tile making machine" The forming part of the roller table is driven by a motor, and the chain drives each roller to rotate.
The hydraulic part of the "Produce roof tile forming machine Glazed tile making machine" is driven by a hydraulic cylinder to move the mold up and down, so that the colored steel can be rolled into shape.
The cutting part of "Produce roof tile forming machine Glazed tile making machine" is driven by a hydraulic cylinder to move the cutting knife up and down to cut the swatch according to the size of the swatch. The whole machine adopts industrial computer PLC control.
"Produce roof tile forming machine Glazed tile making machine" includes forming host, hydraulic station, unwinding frame, forming shear, control box and unloading frame.
"Produce roof tile forming machine Glazed tile making machine" is an antique glazed tile formed by a roller die. It has the characteristics of beautiful appearance, simple and generous, and can be widely used in garden factories, tourist attractions, pavilions, hotels, villas, and exhibition venues. Lobby and resort. , Home and other buildings and outdoor decoration.
Main parameters of Produce Roof Tile Forming Machine Glazed Tile Making Machine
| No. | Produce roof tile forming machine Glazed tile making machine | |
| 1 | Suitable to process | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Control system | PLC control |
| 3 | Productivity | Up layer: 0-3m/min, |
| Down layer: 8-10m/min | ||
| 4 | Width of the raw material | 1000mm |
| 5 | Thickness of the plate | 0.3-1.0mm |
| 6 | Rollers | Up layer:15rows, |
| Down layer:15 rows | ||
| 7 | Diameter of the rollers | Φ80mm |
| 8 | Rolling galvanization thickness | 0.05mm |
| 9 | Material of the cutting blade | Cr12 |
| 10 | Dimension | 6.5*1.5*1.5m |
| 11 | Weight | About 5T |
| 12 | Voltage | 380V 50Hz 3phases |
| 13 | Power | 4+4kw |
