| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 97 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine, Tr4 Tr5 Corrugated Metal Roofing Sheet Making Machine | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 8-15m/minute | Rolling Thinckness:: | 0.3-0.8mm |
| Material Of Mold:: | Cr12 | Condition:: | New |
| Warranty:: | 24 Months | Machinery Test Report:: | Provided |
| Feeding Width:: | 1220mm | Frame:: | 450#H Steel Welded |
| Highlight: | Tr5 Roof Sheet Making Machine,G550 800 Glazed Tile Roll Forming Machine,Tr5 Glazed Tile Roll Forming Machine |
||

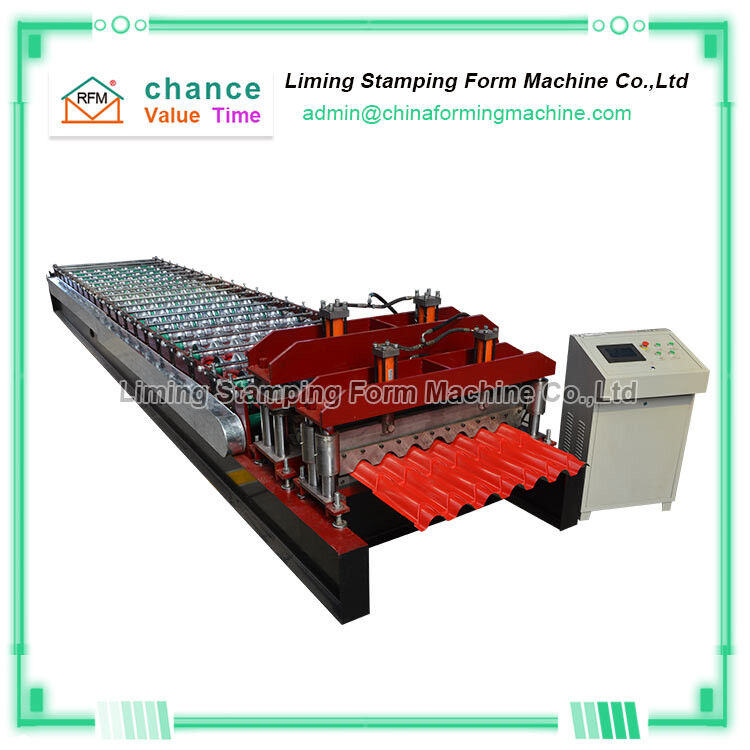

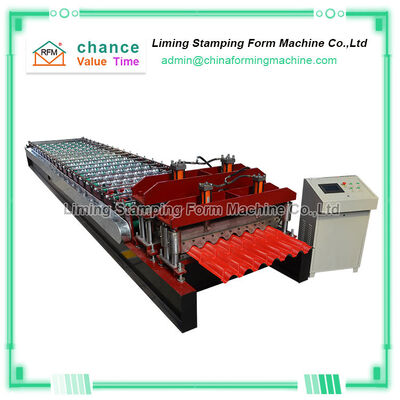

G550 800 Roofing Glazed Tile Roll Forming Machine For Indonesia
"G550 800 roofing glazed tile roll forming machine for Indonesia" produces a high-strength steel plate, which is mainly used for architectural decoration.
As the "G550 800 roofing glazed tile roll forming machine for Indonesia" adopts high-strength steel plate and reasonable size design, it can be widely used on the roof of various buildings. Its walls are easy to install, flexible and not affected by any factors in the building. limit.
"G550 800 roofing glazed tile roll forming machine for Indonesia" is a new type of building material. It uses color steel plate as the bottom plate, which is formed by special processing and special baking. The colors are rich, classic and elegant, adding a finishing touch to your architecture.
"G550 800 roofing glazed tile roll forming machine for Indonesia" is light in weight, high in strength, good in water resistance, easy and quick to install, and can be widely used in villa roofs, urban flat slopes, tourist attractions, etc.
Main parameters of G550 800 Roofing Glazed Tile Roll Forming Machine For Indonesia
| G550 800 roofing glazed tile roll forming machine for Indonesia | |||
| coil material | type | Colored Steel Plate, Galvanized Board, Aluminum Plate | |
| width | 1000mm/1200mm (according to customer requirements and profile drawing) | ||
| thickness | 0.3-0.8mm | ||
| forming device | shaft material | 45#steel-high quality steel, diameter 70 mm/75mm | |
| roller material | 45# steel with chrome coating | ||
| roller station | depends on final design | ||
| Main frame | 300 H steel/ 350 H steel | ||
| chain transport | 1" | ||
| board thickness | 16mm | ||
| weight | around 8.0T(depends on final design) | ||
| dimension | 6500mm*1300mm*1600mm(depends on final design) | ||
| control system | PLC control system(brand as requirement) | ||
| total power | 5.5+4kw (depends on final design) | ||
| voltage | 380V,50HZ,3 phascs or as your need | ||
| productivity | 2--4m/min; 8--12m/min(depends on final design) | ||
| life time | over 10 years | ||
