| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 98 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine, Tr4 Tr5 Corrugated Metal Roofing Sheet Making Machine | Raw Material:: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Production Capacity:: | 8-15m/minute | Rolling Thinckness:: | 0.3-0.8mm |
| Material Of Mold:: | Cr12 | Voltage:: | 380V 50Hz 3phases |
| Warranty:: | 24 Months | Weight: | 4600KG |
| Feeding Width:: | 1220mm | Dimension(L*W*H):: | 7500mm*1.55mm*1.3mm |
| Highlight: | 15m/Minute Roofing Sheet Roll Forming Machine,15m/Minute sheet metal roll forming machines,Glazed Metal Roofing Sheet Roll Forming Machine |
||

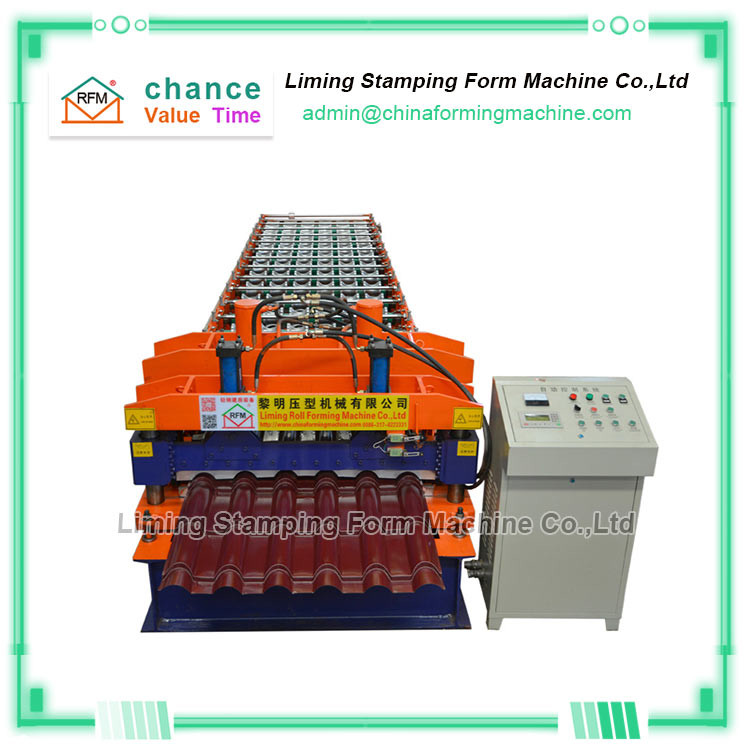

Glazed Metal Roof Sheet Corrugated Tile Roll Forming Machine
The unique design of the "Glazed metal roof sheet corrugated tile roll forming machine": retains the shape of traditional ceramic tiles, and embodies the elegant classical and traditional beauty. It can handle various color substrates, and can choose matte and bright colors.
The water resistance of the "Glazed metal roof sheet corrugated tile roll forming machine": seamless connection of slopes, interference integration of the entire tile, complete sealing and fixing components, and water resistance that other building roof materials do not have.
The "Glazed metal roof sheet corrugated tile roll forming machine" has a short construction time and reduces costs: it meets the site requirements of the construction unit, reduces the construction intensity, improves the construction efficiency, and the construction is not affected by the season.
"Glazed metal roof sheet corrugated tile roll forming machine" tile shape imitates ancient glazed tiles, material is 0.3-0.6 thick colored steel plate, rich in color, strong corrosion resistance, light weight, overall decoration, soft curve and obvious steps, ancient ceramic tiles The effect is reproduced in a very three-dimensional sense.
Main parameters of Glazed Metal Roof Sheet Corrugated Tile Roll Forming Machine
| Article No. | Item Name | Specification |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 0.3-0.8 mm |
| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 70mm or as your customized |
| 6 | Forming speed | 3-4 m/min |
| 7 | Under frame | 350 H-beam |
| 8 | Sidewall | 16mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 11 stations |
| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 3.5 kw |
| 15 | Hydraulic pump station | 4 kw |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 6.5m×1.5mm×1.5m |
| 18 | Weight of the machine | 3.5 tons |
